I have a GO with sprite. I’ve attached 2 collider:
a) a smaller kinematic collider (if something hits the GO)
b) a bigger trigger-collider (kind of radar or if something near GO).
-- COLLISION with something?
if (message_id == GLOBAL.COLLISION_RESPONSE) then --and message_id ~= hash("trigger_response")) and message.other_id ~= go.get_id() then
print("UNIT COLLIDING : " .. go.get_id())
print(message_id)
-- UNIT COLLIDES WHILE SPAWNING move +1 +1
if message.group == hash("unit") or message.group == hash("structure") then
if self.inconstruction == true then
print("UNIT: " .. go.get_id() .. " : Collision while spawning with group " .. message.group .. " otherid " .. message.other_id)
local newpos = go.get_position() + vmath.vector3(GLOBAL.TILESIZE, GLOBAL.TILESIZE, 0)
--print("UNITSCRIPT: SPAWN COLLISION at " .. self.unit.mapPosX .."x" .. self.unit.mapPosY)
go.set_position(newpos)
else
print("UNIT: " .. self.unit.name .. " COLLISION with " .. tostring(sender))
stop_unit(self)
end
end
end
DEBUG:SCRIPT: UNIT COLLIDING : [/instance35]
DEBUG:SCRIPT: hash: [collision_response]
Why does the message_id is COLLISION_RESPONSE (here a global value GLOBAL.COLLISION_RESONSE) if I “trigger” the outer TRIGGER-COLLIDER?
Oh…have to say something important!
At the GO where the TRIGGER-COLLIDER is attached, it works!
But the OTHER GO (which collides) its just a simple COLLISION_RESPONSE. Bug? Missing Feature?
Very bad to handle for the colliding GO
The thing is, the GO which has both colliders are attached receiving the correct messages.
Stange is, the GO who collides with it are not differencing between the two collisions. This GO just receives the collision_response message, but there is no difference if it is a normal kinematic collision or a trigger-collision.
Lets clear this out.
The idea behind this is the following:
Having a GameObject (later GO-A) with a kinematic-collider (smaller) for collisions like bullets etc.
Having a second trigger-collider (bigger than the kinematic) as a tigger if another GameObject (like a unit like GO-B) is near the GO-A (base). I’ll use this technique for reloading and healing the unit (GO-B).

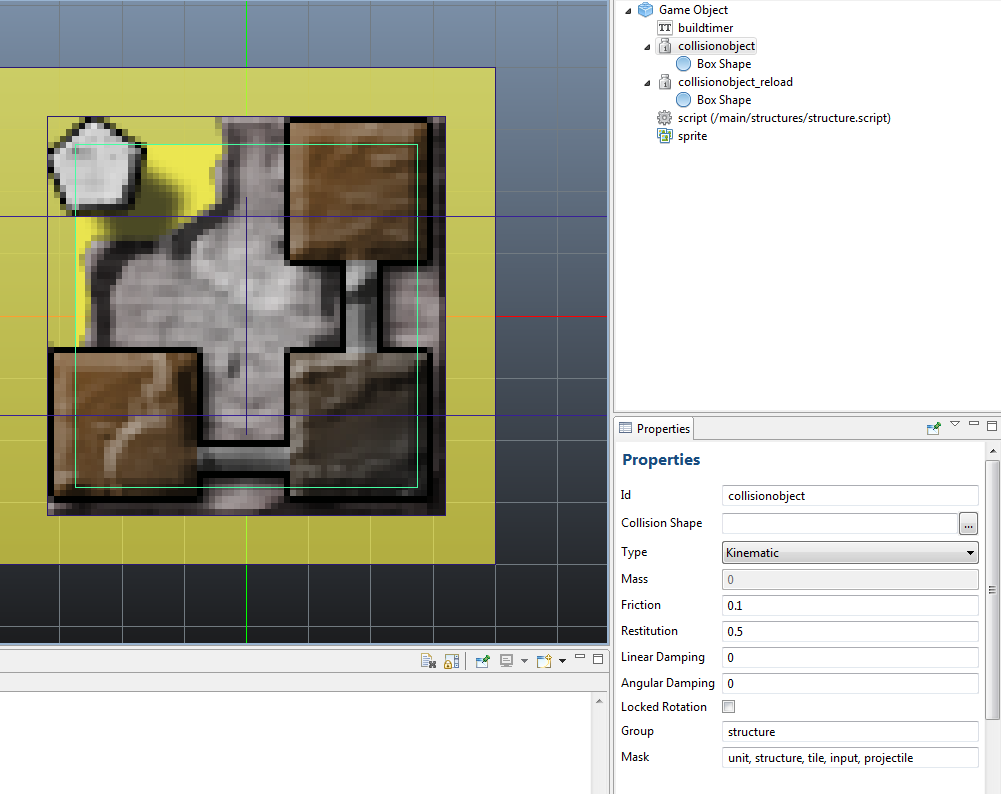

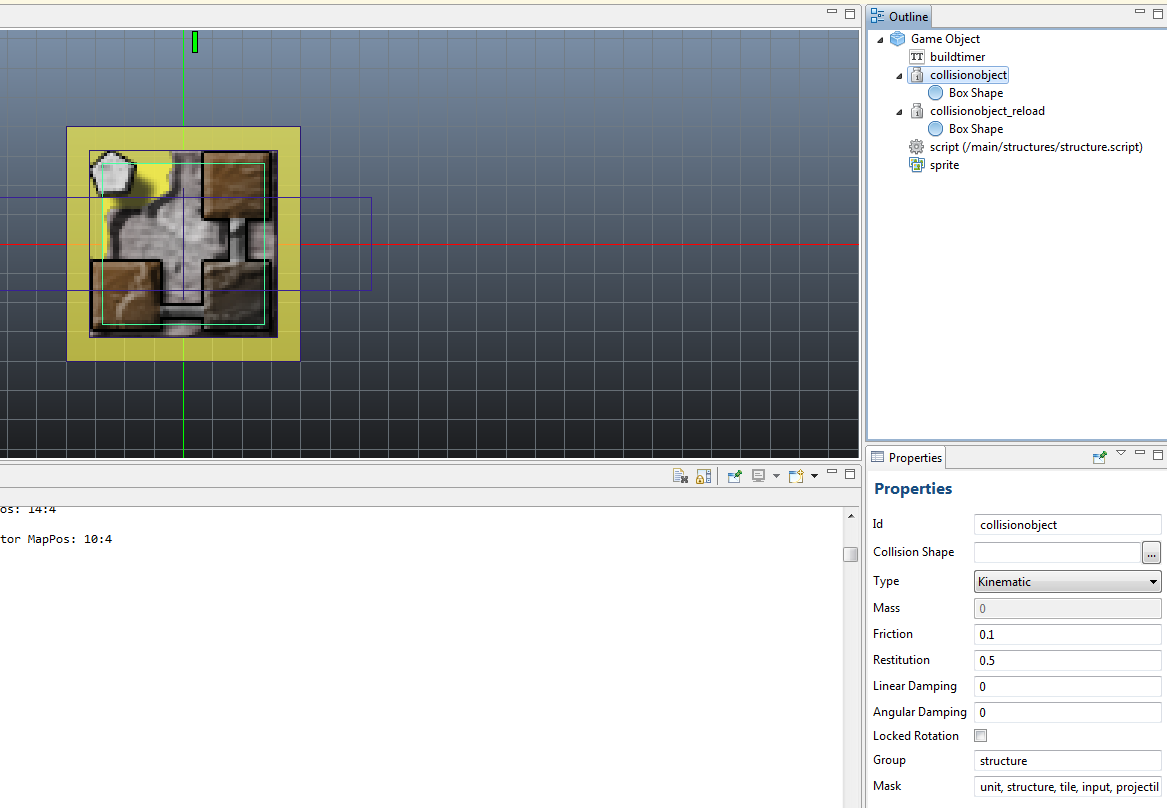

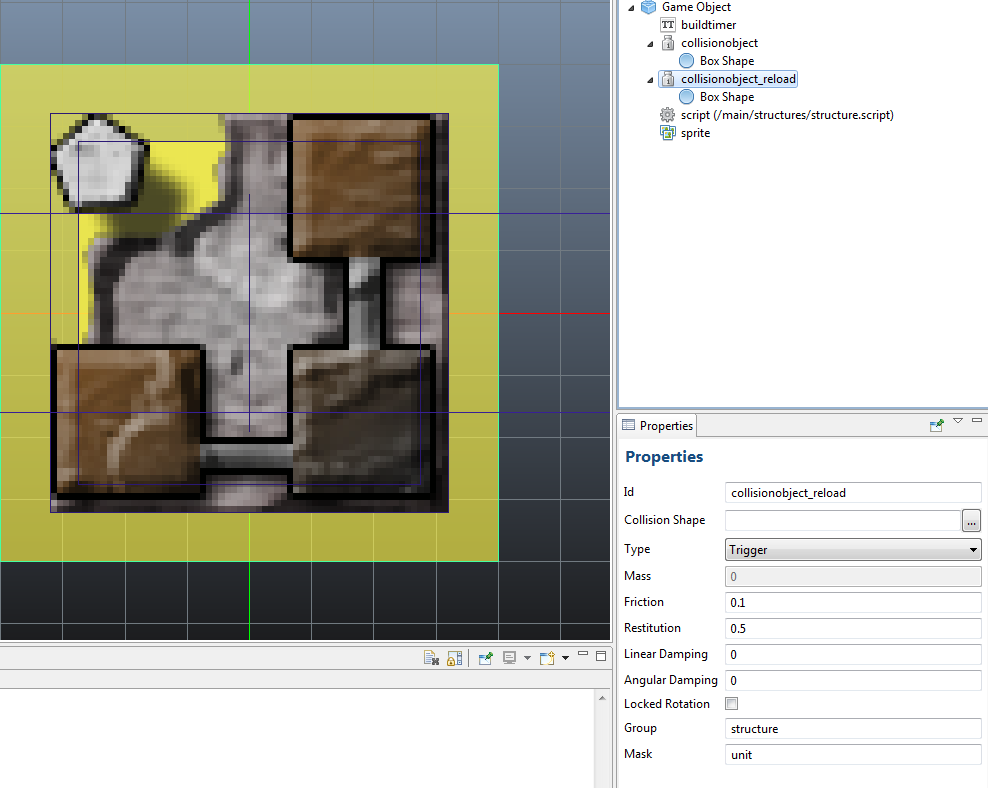

Lets say THIS is GameObjectA (in my project its called “structure_base”) with it colliders:

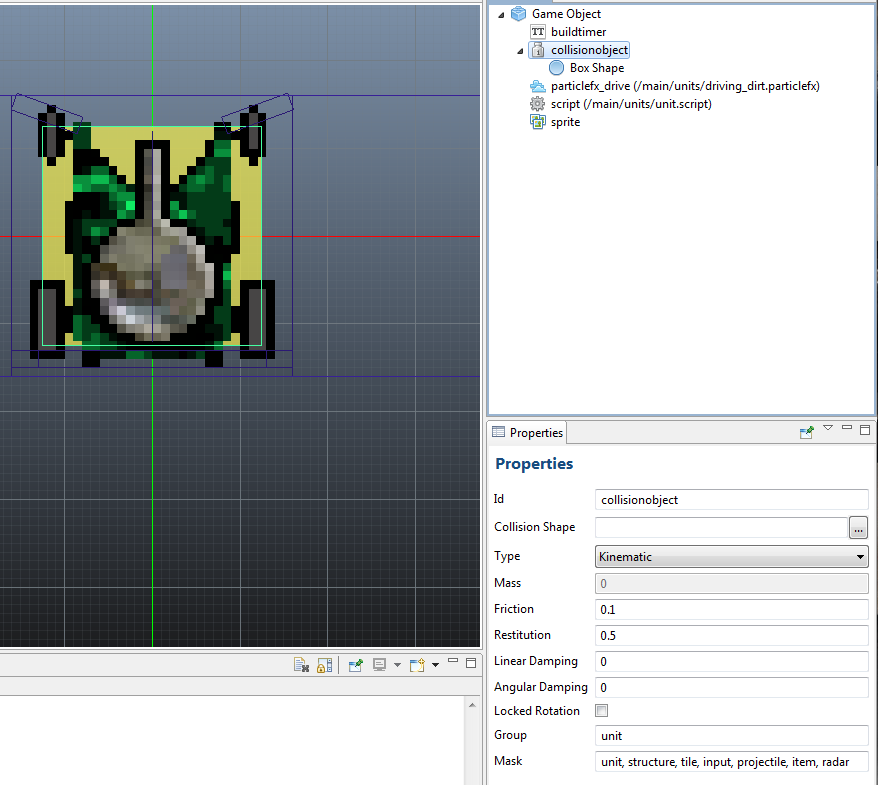

GO-B (buggy) moves near the GO-A (base) until first collision (TRIGGER). The GO-A correctly receives a message “trigger_response” BUT the GO-B receives a “collision_response” message. Should it be like this???
How should I know that the GO-B is colliding with a TRIGGER-collider?
Of cause I could send a message from GO-A to GO-B saying “hey you collided with a trigger” but that wont work well (already done) beause the collision messages are faster and the GO-B already collided
Ah, ok, I see. I’ve replicated your setup and my unit_buggy gets one trigger_response and then continuously collision_response messages. I believe this is to be expected. Aren’t you seeing a trigger_response on the unit_buggy?
Like I’ve wrote the STRUCTURE_BASE received the TRIGGER hash(“trigger_response”) (and I quess later on if it moves on the KINETIC Collision hash(“collision_response”)) message. Thats ok.
But…
the UNIT just receives a KINETIC-Collision hash(“collision_response”) while it collides with the TRIGGER-COLLIDER!
there is NO result/message at UNIT of hash(“trigger_response”). meaning: colliding with the unit to ANY collider just returns a message of hash(“collision_response”). Shouldn’t that be a trigger_response if it collides with a trigger-collider???
Thats the “base” (GO-A) ingame with physics-debug. You can see the “inner” collider (kinetic) and the “outter”/bigger trigger collider (the grey squares ) At the botton-right you aready see the buggy.
hm… oh… grr…
not sure why, but now I get a trigger-collision-message at the unit.
maybe because the “old” code was something like:
if trigger then
…
end
if kinematic then
…
end
not its like this:
if trigger then
…
ELSEif kinematic then
…
end
(first code was from the first lines of code in this project. recoding the statements step by step actually).
output now:
DEBUG:SCRIPT: GAME STARTED
DEBUG:SCRIPT: UNIT KINEMATIC-COLLISSION : [/instance29] group [structure] id [/instance15]
DEBUG:SCRIPT: STRUCTURE: TRIGGER-COLLISION: [/instance15] group [unit], id [/instance29]
DEBUG:SCRIPT: - enter
DEBUG:SCRIPT: UNIT TRIGGER-COLLISION: .. [/instance29] group: [structure] id [/instance15]
DEBUG:SCRIPT: UNIT KINEMATIC-COLLISSION : [/instance29] group [structure] id [/instance15]
DEBUG:SCRIPT: UNIT KINEMATIC-COLLISSION : [/instance29] group [structure] id [/instance15]
DEBUG:SCRIPT: UNIT KINEMATIC-COLLISSION : [/instance29] group [structure] id [/instance15]
One this is “unclear” now.
Why there is a unit-kinematic-collision before the unit-trigger collision???
here is the code for each Gameobject:
STRUCTURE (GO-A):
if message_id == hash("trigger_response") then
print("STRUCTURE: TRIGGER-COLLISION: " .. go.get_id() .. " group " .. message.group ..", id " .. message.other_id)
-- just entered
if message.enter and message.group == hash("unit") then
msg.post(message.other_id, "joinBase")
print(" - enter")
else
msg.post(message.other_id, "leftBase")
print(" - left")
end
return true
end
UNIT (GO-B):
-- COLLISION with something?
if message.group == hash("unit") or message.group == hash("structure") then
if message_id == hash("trigger_response") then
print("UNIT TRIGGER-COLLISION: .. " .. go.get_id().. " group: " .. message.group .. " id " .. message.other_id)
elseif message_id == GLOBAL.COLLISION_RESPONSE then --and message_id ~= hash("trigger_response")) and message.other_id ~= go.get_id() then
print("UNIT KINEMATIC-COLLISSION : " .. go.get_id() .. " group " .. message.group .. " id " .. message.other_id)
-- UNIT COLLIDES WHILE SPAWNING move +1 +1
if self.inconstruction == true then
print("UNIT: " .. go.get_id() .. " : Collision while spawning with group " .. message.group .. " otherid " .. message.other_id)
local newpos = go.get_position() + vmath.vector3(GLOBAL.TILESIZE, GLOBAL.TILESIZE, 0)
--print("UNITSCRIPT: SPAWN COLLISION at " .. self.unit.mapPosX .."x" .. self.unit.mapPosY)
go.set_position(newpos)
end
end
end
For my logic the TRIGGER collision should be the first message because its the first contact or not?
There’s a kinematic collision happening because one of your objects is kinematic (the unit_buggy).
Why not have a different group for the trigger, perhaps structure_trigger, and check message.group in unit_buggy? If message.group == hash("structure_trigger") while resolving a collision_response then ignore it.
