Hey there!
We have 1920/1080 resolution set in our game.project file. But it only resizes (stretches) to resolutions smaller than 1920/1080. If we try to stretch it to 4k, it seems like it stretches correctly, but everything beyond that 1920/1080 is black, i.e. our game is running in 1/4 corner of a black screen.
Actually, the render script was the first thing we made in our game. And seems like it’s a total mess)
So you’re able to sort the issue on your own then?
Not so sure about that( We still can’t remove the black border. In one case it appears in the right part of the screen, in other case it’s on top…
Maybe some example might help. We checking few examples right now, but not sure if they will help in our case. Will be extremely grateful for some desktop resolutions example.
Seems like I’ve just fixed that. But absolutely have no idea what’s happened…
Nope. Fixed almost everything and now the game layer stretches correctly as it should. But still everything beyond workspace (1920x1080) is pitch black, i.e. 4k looks like this.
here’s our render script
local function fixed_projection(self)
local projected_width = render.get_width()-- / zoom / resZoomX
local projected_height = render.get_height()-- / zoom / resZoom
local xoffset = - (projected_width)/2 --(projected_width - render.get_width()) - 240 --480
local yoffset = - (projected_height)/2 --(projected_height - render.get_height()) - 180 --320
return vmath.matrix4_orthographic(xoffset, xoffset + projected_width, yoffset, yoffset + projected_height, -1000, 5000)
end
function update(self, dt)
render.clear({[render.BUFFER_COLOR_BIT] = vmath.vector4(0,0,0,0), [render.BUFFER_DEPTH_BIT] = 1, [render.BUFFER_STENCIL_BIT] = 0})
render.set_depth_mask(true)
render.set_stencil_mask(0xff)
render.set_viewport(0, 0, window_width, window_height)
render.set_view(self.view)
render.set_depth_mask(false)
render.disable_state(render.STATE_DEPTH_TEST)
render.disable_state(render.STATE_STENCIL_TEST)
render.enable_state(render.STATE_BLEND)
render.set_blend_func(render.BLEND_SRC_ALPHA, render.BLEND_ONE_MINUS_SRC_ALPHA)
render.disable_state(render.STATE_CULL_FACE)
--render to buffer
render.set_projection(fixed_projection())
render.enable_render_target(self.sbuffer)
--draw gfx
render.draw(self.background_pred)
render.draw(self.tiles_pred)
render.draw(self.twode_pred)
render.draw(self.mist_pred)
render.disable_render_target(self.sbuffer)
--send buffer to screen
print(render.get_window_width(), render.get_window_height(), window_width, window_height, resZoom, zoom)
render.set_view(vmath.matrix4())
render.set_viewport(0, 0, window_width / resZoomX, window_height / resZoom)
render.set_projection(vmath.matrix4())
render.enable_texture(0, self.sbuffer, render.BUFFER_COLOR_BIT)
render.draw(self.quad_pred)
render.disable_texture(0, self.sbuffer, render.BUFFER_COLOR_BIT)
--render Lights
render.set_viewport(0, 0, window_width, window_height)
render.set_view(self.view)
render.draw(self.lights_pred)
-- render GUI
render.set_view(vmath.matrix4())
render.set_viewport(0, 0, window_width, window_height)
render.set_projection(vmath.matrix4_orthographic(0, window_width, 0, window_height, -1, 1))
render.enable_state(render.STATE_STENCIL_TEST)
render.draw(self.gui_pred)
render.draw(self.text_pred)
render.disable_state(render.STATE_STENCIL_TEST)
render.draw(self.cursors_pred)
end
What is the window width/height at this point?
window_width, window_height - is active screen resolution from game settings, i.e. it’s 3840 and 2160 for 4k.
resZoom = settings.resolution.y / 1080
resZoomX = settings.resolution.x / 1920
window_width = settings.resolution.x
window_height = settings.resolution.yIsn’t this the problem?
What do you actually set the viewport to here? What are the values?
Shouldn’t it me window width/height?
Doc for glViewport
Changed to render.set_viewport(0, 0, window_width, window_height)

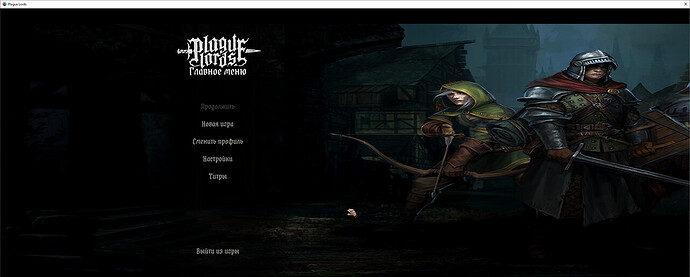

Now it looks like this. It’s a test resolution of 2560x1000
Adding render.set_viewport(0, 0, window_width, window_height / resZoom) gives correct height.
resZoom = window_height(1000) / workspace_height(1080)
OK, that’s where I came to)
I’m setting the projection to workspace/gamecamera resolution (1920x1080) with
local function fixed_projection(self)
local projected_width = render.get_width()
local projected_height = render.get_height()
local xoffset = - projected_width / 2
local yoffset = - projected_height / 2
return vmath.matrix4_orthographic(xoffset, xoffset + projected_width, yoffset, yoffset + projected_height, -1000, 5000)
end
Then I render all game/camera layers to some sbuffer, and then scale it to game window with
render.set_view(vmath.matrix4())
render.set_projection(vmath.matrix4())
render.set_viewport(0, 0, render.get_window_width(), render.get_window_height())
render.enable_texture(0, self.sbuffer, render.BUFFER_COLOR_BIT)
render.draw(self.quad_pred)
render.disable_texture(0, self.sbuffer, render.BUFFER_COLOR_BIT)
And here how game/camera layer looks on 720p, 1080p and testing resolution 2560 x 1000
Looks like it definitely lacks some index on a final stage. So when I add that index
resZoomX = render.get_width() / render.get_window_width()
resZoom = render.get_height() / render.get_window_height()
render.set_viewport(0, 0, render.get_window_width() * resZoomX, render.get_window_height() * resZoom)
Done. That’s the correct stretch to final window in all resolutions. But it paints black everything that is beyond workspace /gamecamera resolution (1920x1080). And I don’t know where that black border came from.
Great to hear!
For the benefit of the users of the forum, could you explain a bit about the solution? (while it’s fresh in memory
)
Well, for me it might still take some effort to sort it all out
Alex remade all screen render target calculations and moved them to separate function, and now it works fine.
Maybe Alexey @AGulev will find a minute to briefly describe where the problem was.
Long story short:
I can’t share the render script I sent to @kidkiedis (it’s not my project), but here is my old render_script from Solitaire I made all the fixes based on it:
render.zip (4.9 KB)
