Orthographic gizmo size

Questions
1

I’m a Defold beginner. I want to create a 2D game and have been trying various things, but I’m troubled because the Gizmo that represents the range of the orthographic camera doesn’t match the actual projection range. Even though I have orthographic projection turned ON, it seems like the Scene view is displaying the Perspective size. I read the manual about this, but I couldn’t find any information that seemed useful. Does anyone have information about this?

Orthographic is wrong.

Orthographic
Orthographic1523×1448 297 KB

Perspective is correct.

Perspective
Perspective1459×1429 227 KB

2

I have the same question as well

1 Like
3

Could you please create a feature request on GitHub so that we can improve this?

1 Like
4

Dear,

OK. I will create a feature request.

Btw, I’ve found a solution.

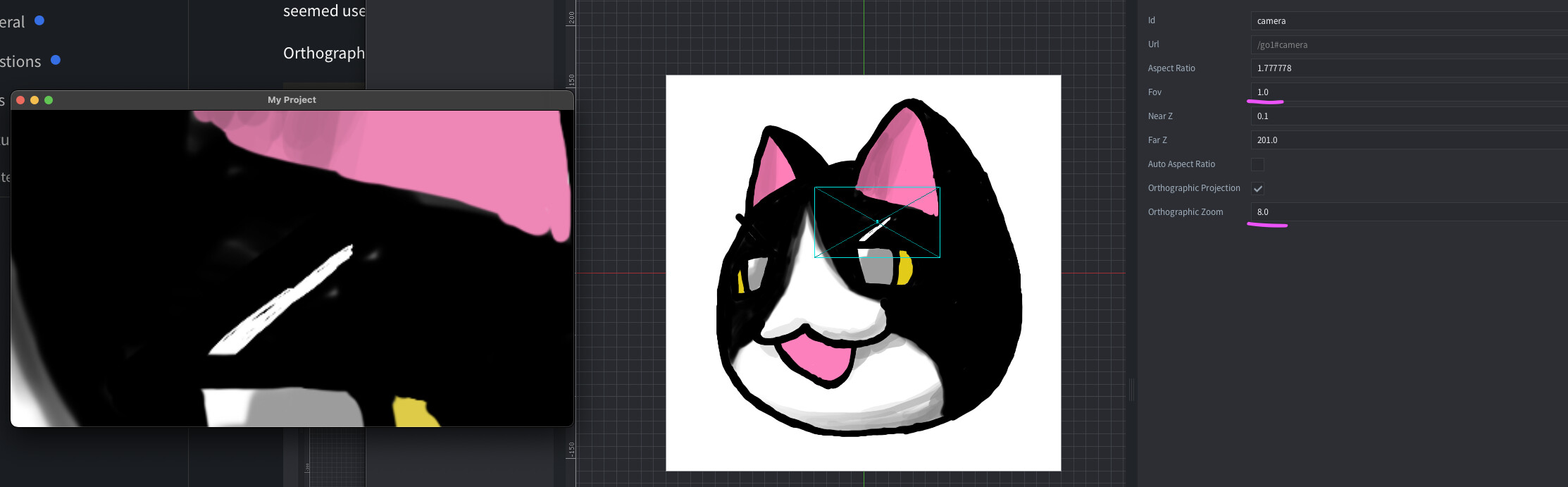

Screenshot 2025-07-24 at 13.54.03
Screenshot 2025-07-24 at 13.54.032226×691 134 KB

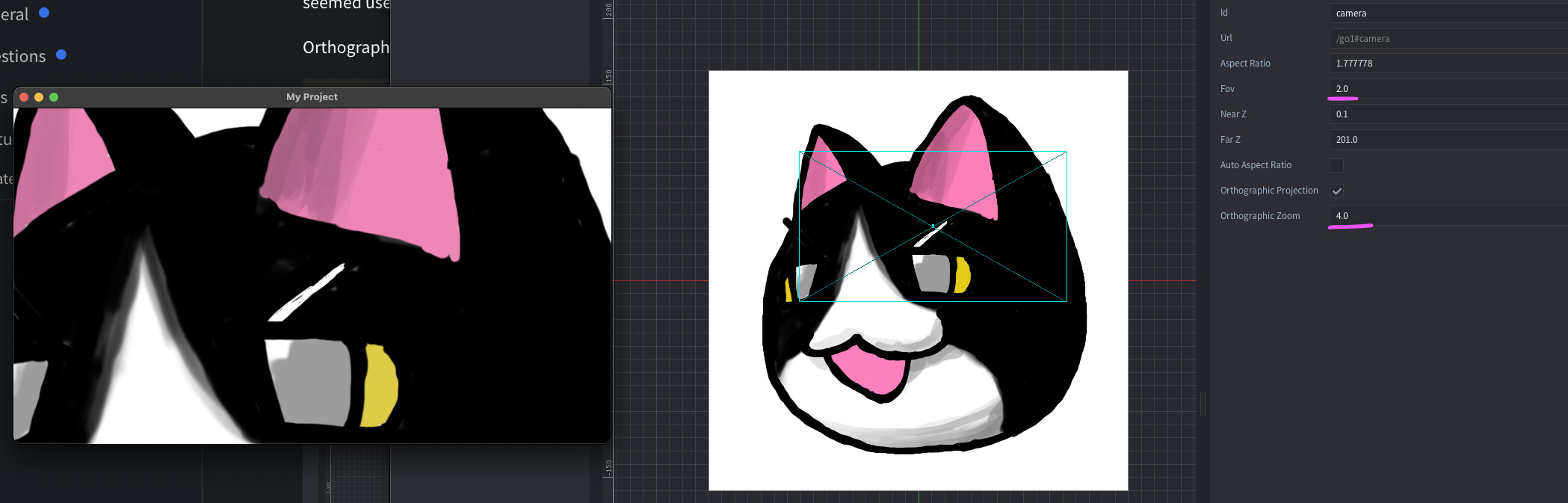

Screenshot 2025-07-24 at 13.54.46
Screenshot 2025-07-24 at 13.54.462098×673 142 KB

In orthographic mode, you can achieve the correct settings by ensuring that Orthographic Zoom * Fov = 8 .
However, since Fov should be ignored in orthographic mode, this is a bad know-how. :slight_smile:

P.S. Orthographic gizmo size is strange · Issue #11007 · defold/defold · GitHub
