Hello,
Humble beginner here too.
Infinite scrolling is one of the first things i tried like you.
I remember having met some friction points.
Some details are missing for us to help you, so i’m going to try to guess.
Maybe I can spot few things that could help you.

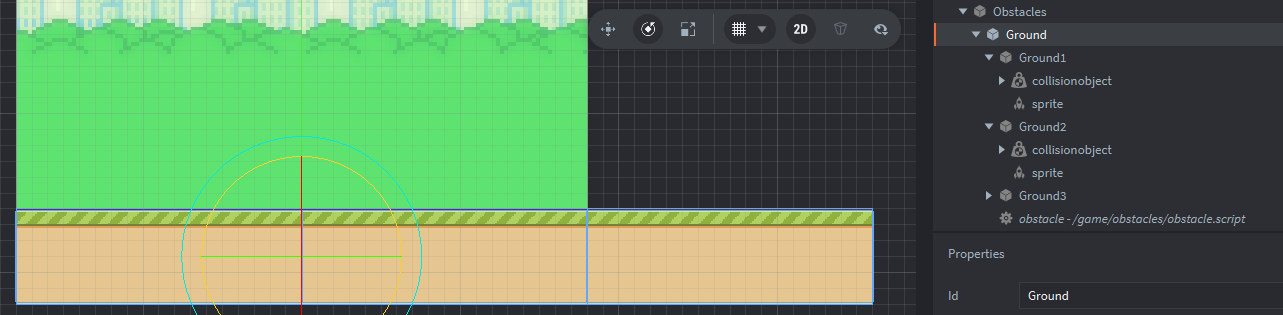

How did you manually place the objects in your main collection, did you place the sprites components instead of placing GO’s ?
Why are you using 3 sprites ? I mean, it is a viable option, but the common way to do it is to use 2 sprites each the width of the game width resolution. If sprite is too short, then repeat it to cover at least a width of 2 game’s width, and divide it in 2 game objects. That’s perfectly doable with your 3 sprites approach, but that would simplify the maths and the thinking process.
That is leading me to the gap, You chose startX at 1/2 display + 1/2 sprite’s width. I don’t know where you placed your sprites origin, neither the sprite’s width, nore the display’s width you’re testing with, but half the lenght of your 3 sprites must be at least equal to your display width.

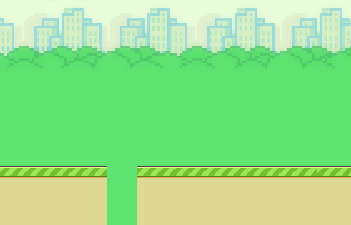

From the picture you’ve provided, that seems to be a position problem, either in your startx / endx, or in the way you’ve placed your sprites in their own GOs. I remember myself having problems with 1 pixel gaps occuring here and there, and that don’t seem to be your problem. This 1 pixel gap i am talking about was solved by moving the “root” of the scroll instead of the sprites, then when reaching the X limits, repositioning the “root” object and switching the sprites position relative to the root at the same time.
Rereading this, i can see that i’m not so helpful, but i hope i could give you some hints.
Do not hesitate to share a minimal project here, as i see it often requested for “quality” help.
Edit:
Ok, i was not happy about the answer i gave you, so i tried to reproduce your project, and better understand your concerns.
Following code is working fine with the “mimic” project i tried to make.
I think that is the behaviour you wished, and you can see the 1 pixel gap i was talking about.
That is assuming your collection, camera and scroll objects are all Origin aligned, and that your game width do not exceed the lenght of 2 sprites.
go.property("moveSpeed", -100)
function init(self)
self.groundObjects = {
ground1 = "/Ground1",
ground2 = "/Ground2",
ground3 = "/Ground3"
}
local screenWidth = tonumber(sys.get_config_int("display.width"))
self.groundSpriteWidth = go.get(self.groundObjects.ground1 .. "#sprite", "size.x")
self.groundStartXPosition = 2 * self.groundSpriteWidth
self.groundEndXPosition = -self.groundSpriteWidth
end
function update(self, dt)
local moveVector = vmath.vector3(self.moveSpeed * dt, 0, 0)
for k, v in pairs(self.groundObjects) do
local pos = go.get_position(v)
if pos.x <= self.groundEndXPosition then
pos.x = self.groundStartXPosition
go.set_position(pos, v)
else
go.set_position(pos + moveVector, v)
end
end
end
