Customizing profiler UI in Defold, can I show only the metrics I care about?

Questions
1

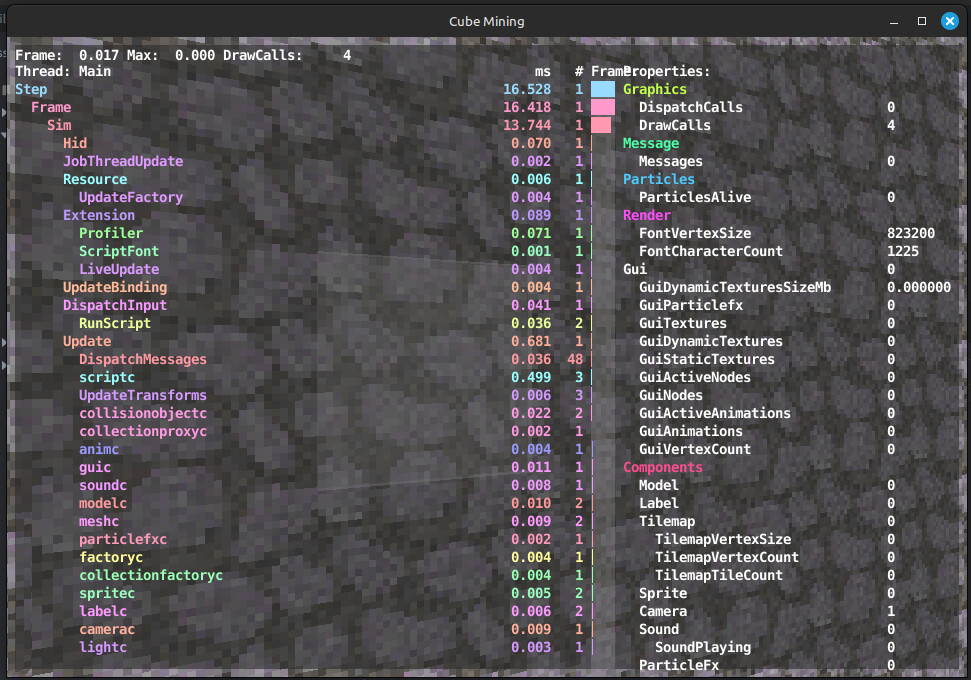

image971×680 226 KB

I’m working on a voxel game in defold and ran into a small annoyance with the profiler. When I enable profiler.enable_ui, it throws a lot of info on screen, but honestly most of it isn’t what I need while testing gameplay.

What I actually want to keep an eye on is pretty simple: current FPS, ideally 1% low FPS to catch stutters, frame time in ms, draw calls, how many faces,vertices are being rendered, chunk mesh build time, ram usage, and how many chunks are active.

Right now the profiler ui feels a bit overloaded for that. Is there a way to hide parts of the profiler or customize what’s shown? Or is the normal approach to just build a small custom debug overlay and pull the values manually instead?

Curious how others solved this in real projects.

2 Likes
2

You can set the view mode to minimized:

3

can I add my own variables to the list? I thought maybe profiler.log_text could be useful but didnt find where it is types

profiler.scope_begin(“test_function”)
test_function(self)
profiler.scope_end()

also scope looks useful but it does nothing. I’m expecting in game ui profiler something but maybe it logs to text file I didnt understand

image961×636 49.3 KB

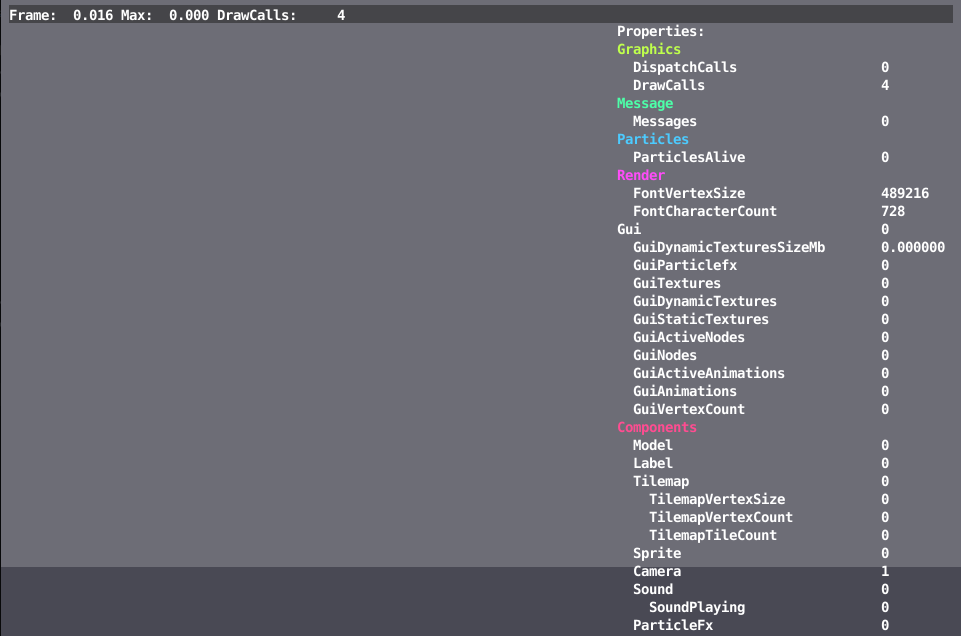

profiler.set_ui_view_mode(profiler.VIEW_MODE_MINIMIZED) helped but I want to see low fps, mesh face count etc

and I think right labels does not fit to screen how can I scroll?

1 Like
4

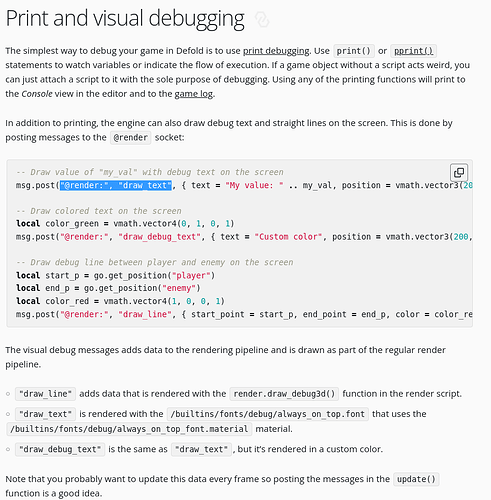

I’m using “@render:”, “draw_text” works fine. draw_line draws on world space had to check camera angle to place lines on world to show correctly like it is an ui

image823×837 103 KB

local function format_mem(kb)
    if kb > 1024 then
        return string.format("%.2f MB", kb / 1024)
    else
        return string.format("%.2f KB", kb)
    end
end

-- Helper to convert logical screen coordinates to world coordinates fixed to the camera
local function ScreenToWorld(x, y, d, cam_pos, cam_rot, width, height, aspect)
    local fov = math.rad(45) -- Match free_camera.script
    local tan_half_fov = math.tan(fov / 2)

    -- Normalize screen coordinates to [-1, 1]
    local nx = (x / width - 0.5) * 2
    local ny = (y / height - 0.5) * 2

    -- Calculate position in camera space
    local dx = nx * d * tan_half_fov * aspect
    local dy = ny * d * tan_half_fov
    local dz = -d

    local local_pos = vmath.vector3(dx, dy, dz)
    -- Rotate to world space and add camera position
    return cam_pos + vmath.rotate(cam_rot, local_pos)
end

function init(self)
    msg.post(".", "acquire_input_focus")
    self.mode = 0 -- 0: Off, 1: Text, 2: Text + Graph
    self.frame_times = {}
    self.max_samples = 100
    self.current_fps = 0
    self.low_1_fps = 0

    -- Logical size from game.project
    self.logical_width = 960
    self.logical_height = 640
end

function update(self, dt)
    if self.mode == 0 then return end

    -- FPS calculation
    self.current_fps = 1 / math.max(dt, 0.0001)

    -- Sample management
    table.insert(self.frame_times, dt)
    if #self.frame_times > self.max_samples then
        table.remove(self.frame_times, 1)
    end

    -- 1% Low FPS calculation
    if #self.frame_times >= 10 then -- Need some minimal samples
        local sorted_times = {}
        for i, v in ipairs(self.frame_times) do sorted_times[i] = v end
        table.sort(sorted_times)

        -- The 1% slowest frames (largest dt)
        local index = math.max(1, math.floor(#sorted_times * 0.99))
        self.low_1_fps = 1 / math.max(sorted_times[index], 0.0001)
    end

    -- Base position and style
    local x_start = 200
    local y_start = 200
    local color = vmath.vector4(0, 1, 0, 1)

    -- Display Text
    local ram = collectgarbage("count")
    local faces = _G.stats_faces or 0
    local vertices = _G.stats_vertices or 0
    local build_time = _G.stats_mesh_build_time or 0

    local lines = {
        string.format("FPS: %.1f", self.current_fps),
        string.format("1%% Low FPS: %.1f", self.low_1_fps),
        string.format("Faces: %d", faces),
        string.format("Vertices: %d", vertices),
        string.format("Mesh Build: %.2f ms", build_time),
        string.format("RAM: %s", format_mem(ram))
    }

    for i, line in ipairs(lines) do
        msg.post("@render:", "draw_debug_text", {
            text = line,
            position = vmath.vector3(x_start, y_start - (i * 20), 0),
            color = color
        })
    end

    -- Display Graph (Mode 2)
    if self.mode == 2 and #self.frame_times > 1 then
        local success, cam_pos = pcall(go.get_position, "camera")
        if not success then return end -- Camera might not be ready
        local cam_rot = go.get_rotation("camera")
        local width, height = window.get_size()
        local aspect = width / height
        local d = 0.5 -- Distance in front of camera

        local graph_width = 200
        local graph_height = 80
        local graph_x = x_start
        local graph_y = y_start + 10 -- Position above text

        local max_graph_fps = 144    -- Cap visual height
        local min_graph_fps = 0
        local step_x = graph_width / (self.max_samples - 1)

        for i = 1, #self.frame_times - 1 do
            local fps1 = 1 / math.max(self.frame_times[i], 0.0001)
            local fps2 = 1 / math.max(self.frame_times[i + 1], 0.0001)

            -- Normalize h1 and h2
            local h1 = math.min(1, (fps1 - min_graph_fps) / max_graph_fps) * graph_height
            local h2 = math.min(1, (fps2 - min_graph_fps) / max_graph_fps) * graph_height

            local sx1, sy1 = graph_x + (i - 1) * step_x, graph_y + h1
            local sx2, sy2 = graph_x + i * step_x, graph_y + h2

            msg.post("@render:", "draw_line", {
                start_point = ScreenToWorld(sx1, sy1, d, cam_pos, cam_rot, self.logical_width, self.logical_height,
                    aspect),
                end_point = ScreenToWorld(sx2, sy2, d, cam_pos, cam_rot, self.logical_width, self.logical_height, aspect),
                color = color
            })
        end

        -- Target line (60 FPS)
        local h60 = (60 / max_graph_fps) * graph_height
        msg.post("@render:", "draw_line", {
            start_point = ScreenToWorld(graph_x, graph_y + h60, d, cam_pos, cam_rot, self.logical_width,
                self.logical_height, aspect),
            end_point = ScreenToWorld(graph_x + graph_width, graph_y + h60, d, cam_pos, cam_rot, self.logical_width,
                self.logical_height, aspect),
            color = vmath.vector4(0, 1, 0, 0.2)
        })
    end
end

function on_input(self, action_id, action)
    if action_id == hash("toggle_performance") and action.pressed then
        self.mode = (self.mode + 1) % 3
        local modes = { "Off", "Text", "Text + Graph" }
        print("Performance overlay mode: " .. modes[self.mode + 1])
    end
end
