Hi Everyone!

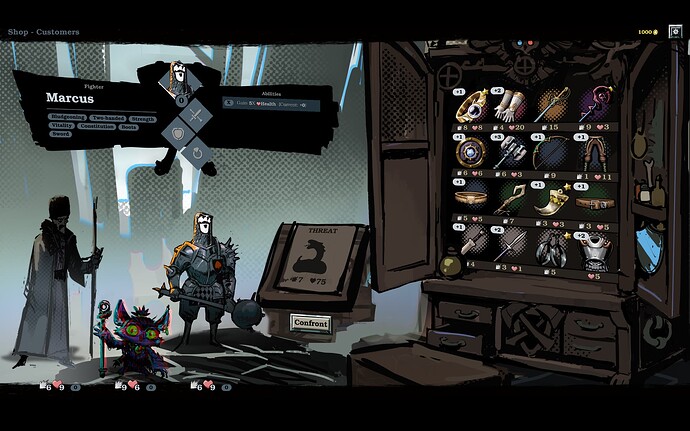

A while ago I put up a demo of the game we’re working on here: The Guild Trader (Demo) by nog1potje

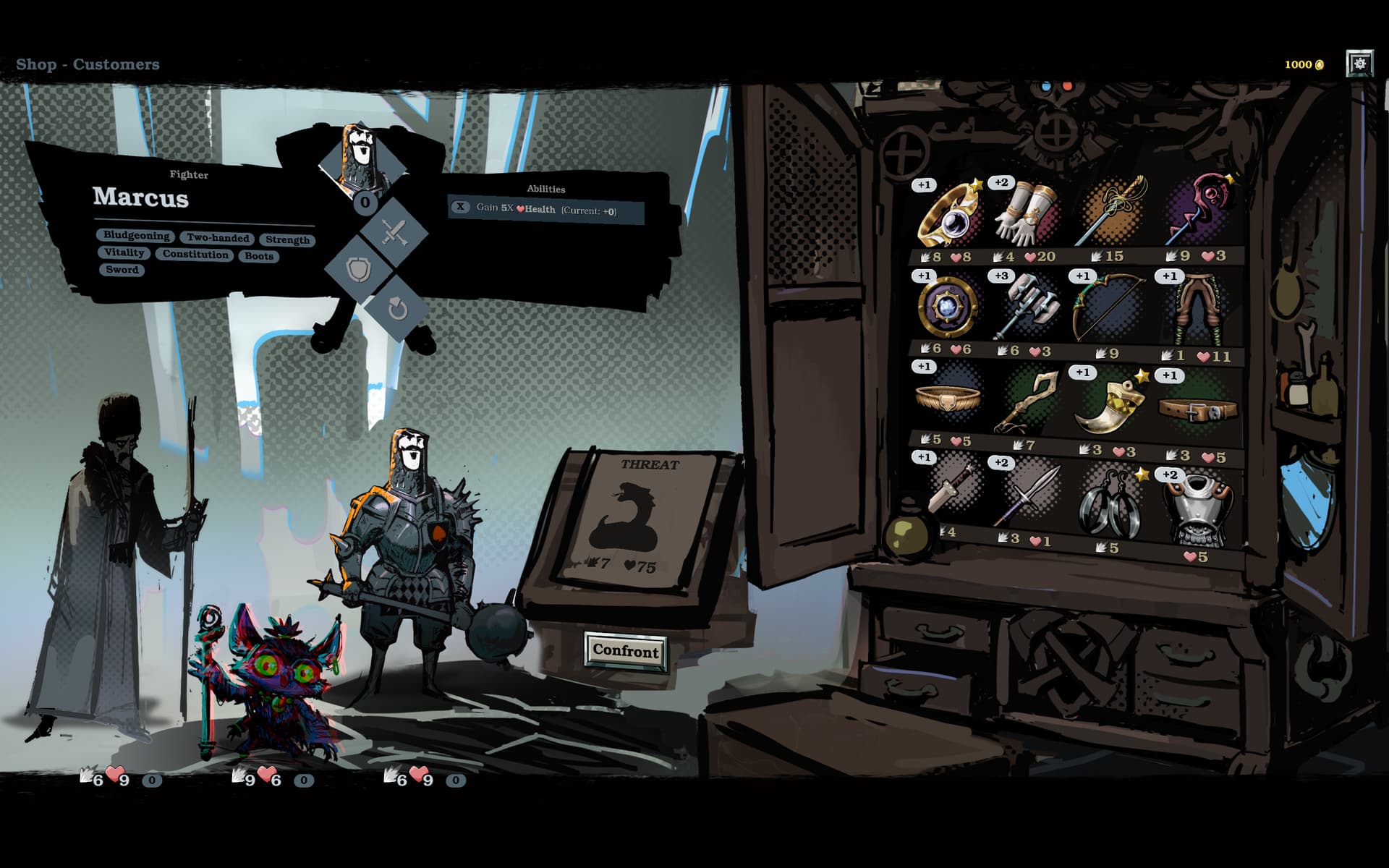

In the game you sell gear to adventurers who must stop incoming threats from destroying your town. The adventurers will autobattle the threat after closing the shop. Please let us know what you think!

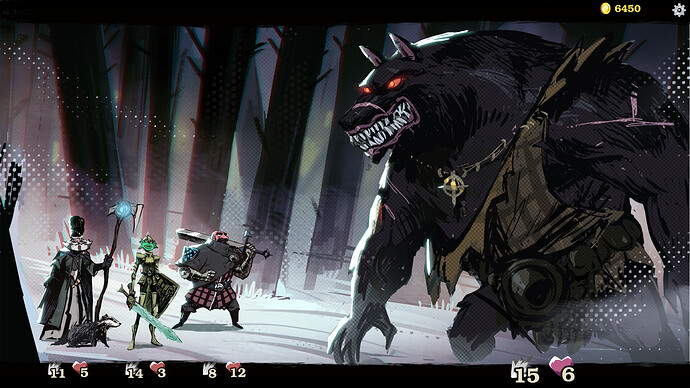

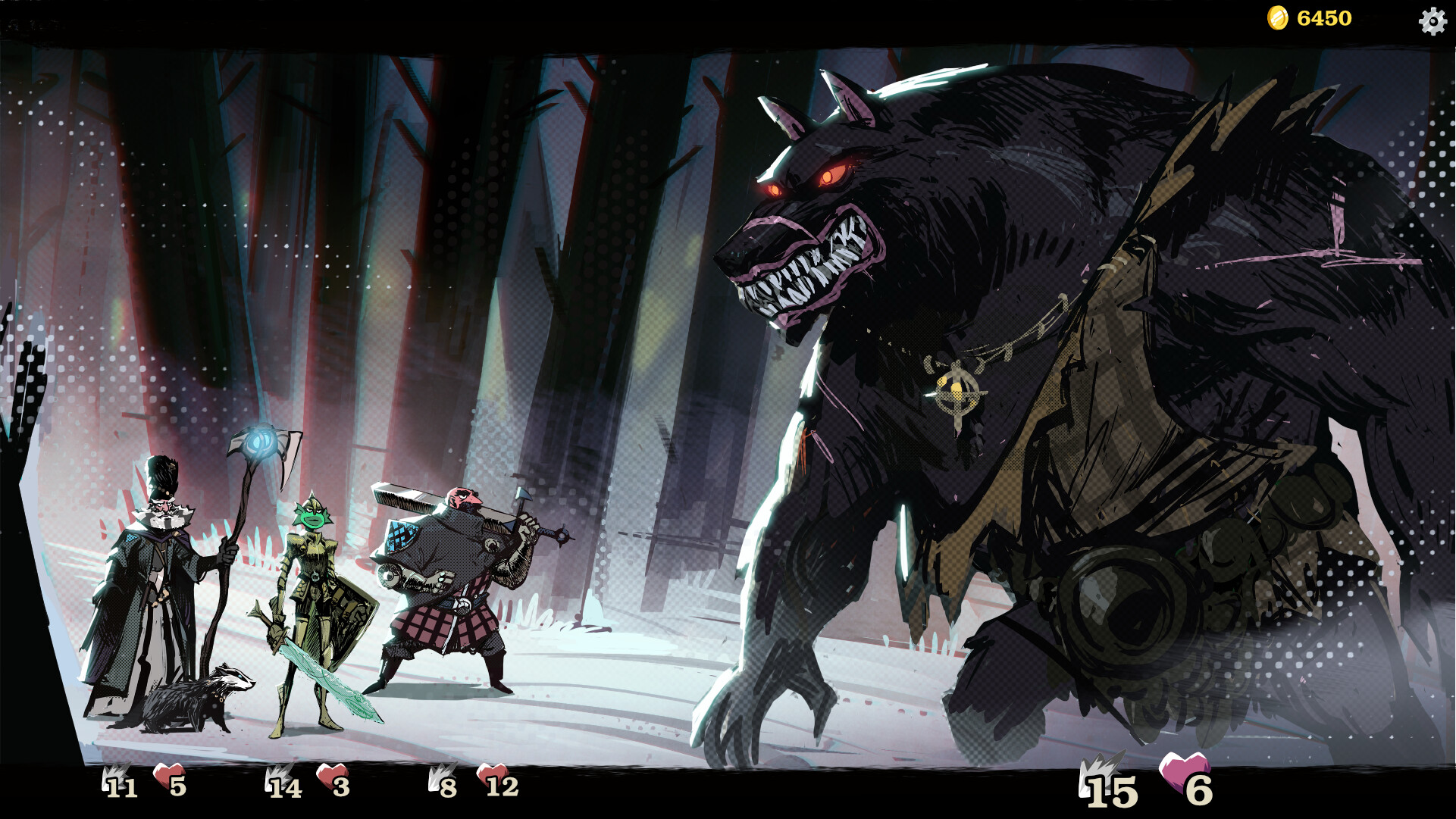

Currently working with an artist to completely overhaul the theme and look:
I love the idea and gameplay. Looking forward to seeing the game with the new art style and added polish.
Looks great! I like the concept too!
Thematically it’s actually no longer a shop. In the game you play as a quartermaster who is helping heroes on their expeditions. The title for the game that we have in mind now is the Chopkeeper.

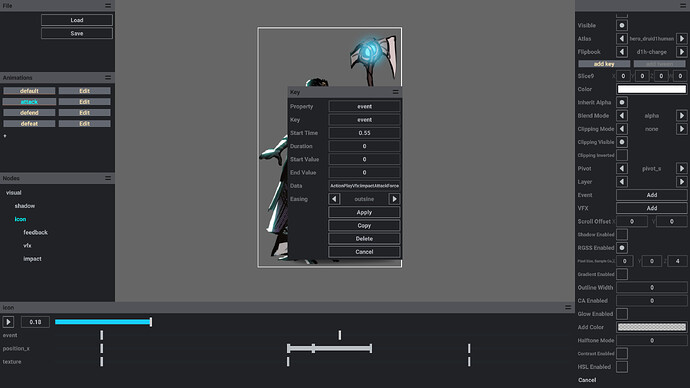

I’ve also put together an in-game animation tool based on Panthera and added some functionality to the playback engine. This tool allows me animate and preview tweens, flipbooks, shader constants, and overlay other animations. I’m now working to consolidate all animations.
That sounds both impressive and scary! Could you share your experience with it? I’m very intrigued!
For sure! The main reason I built it is due to frustration with the disjointed workflow when trying to animate a combination of flipbook, tweens, particles and shader constants. The only way to see the combined result was ingame.
Some things to know up front though:

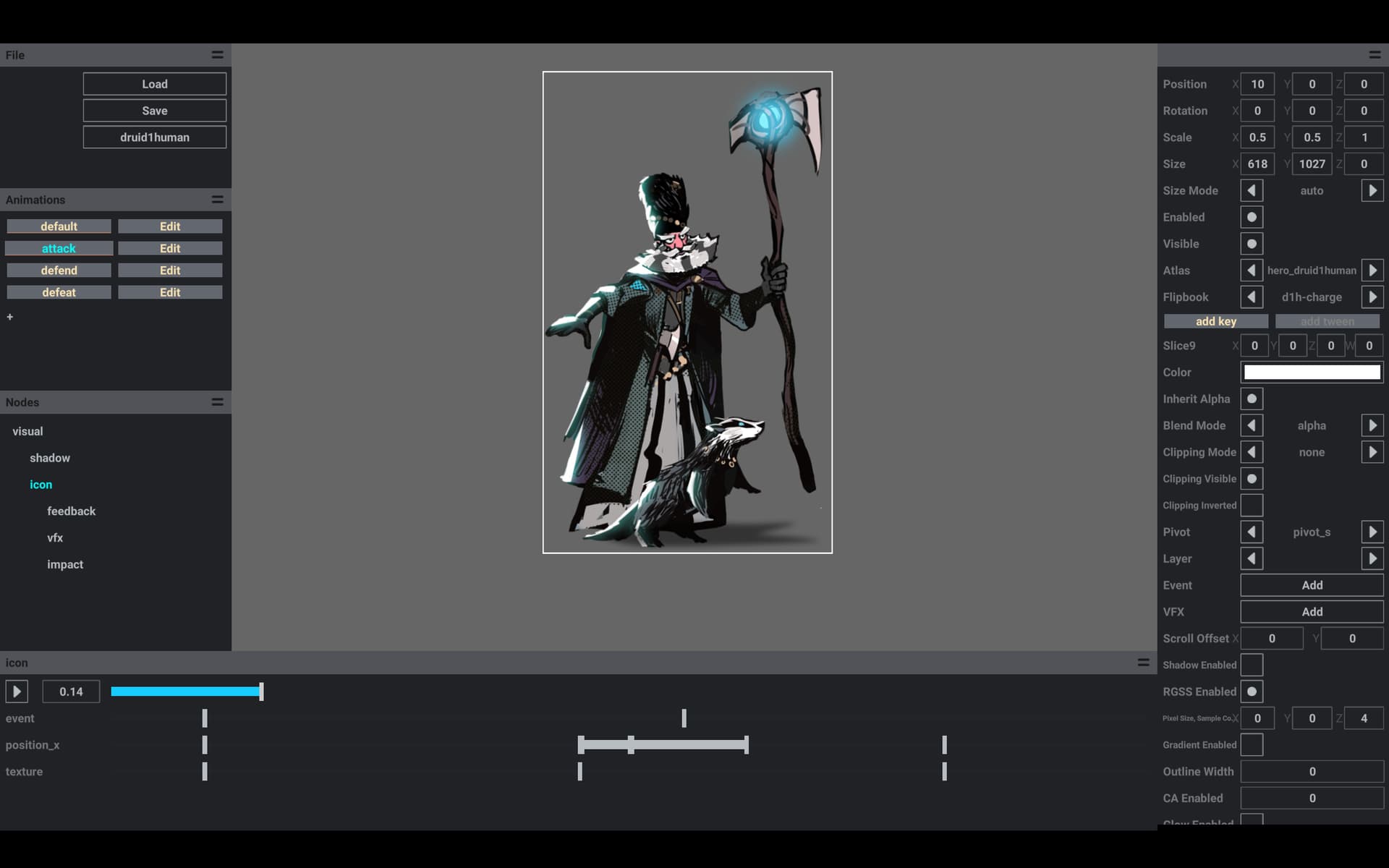

I replicated the panthera editor layout out of modified druid property panels with some added properties. The editor itself is a monarch screen that I can switch to when pressing F2.

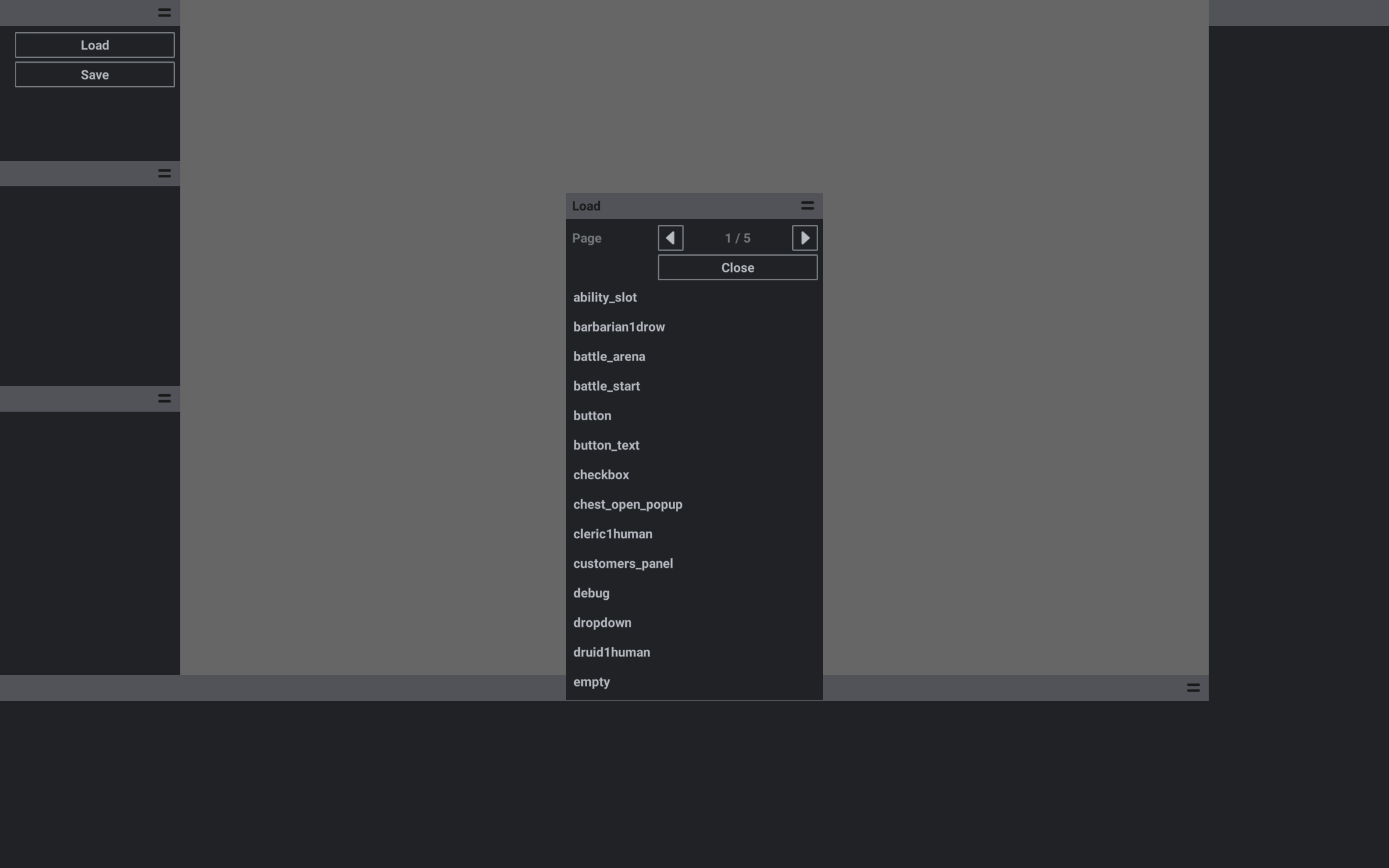

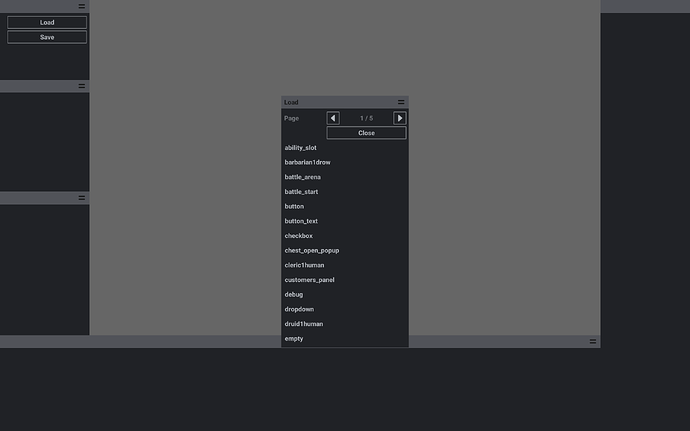

Then you can pick a template and instantiate/load it:

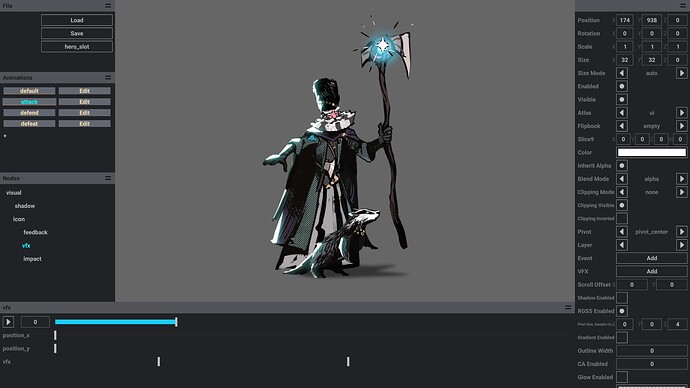

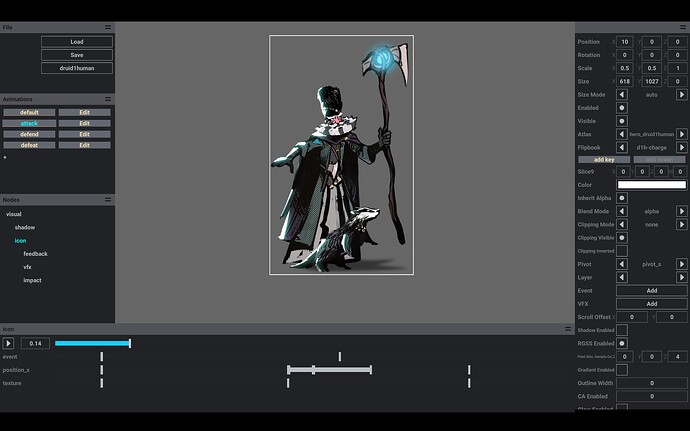

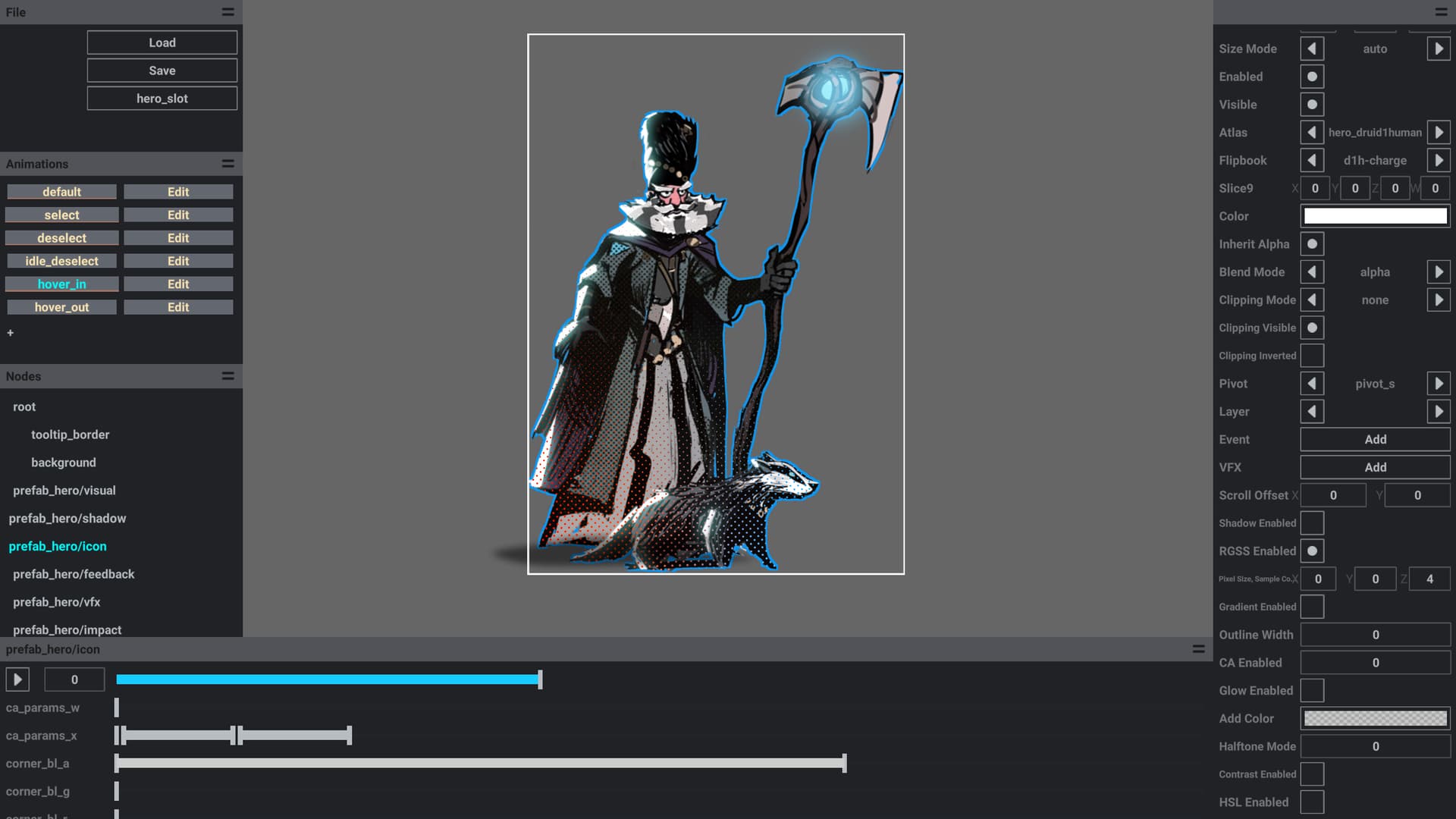

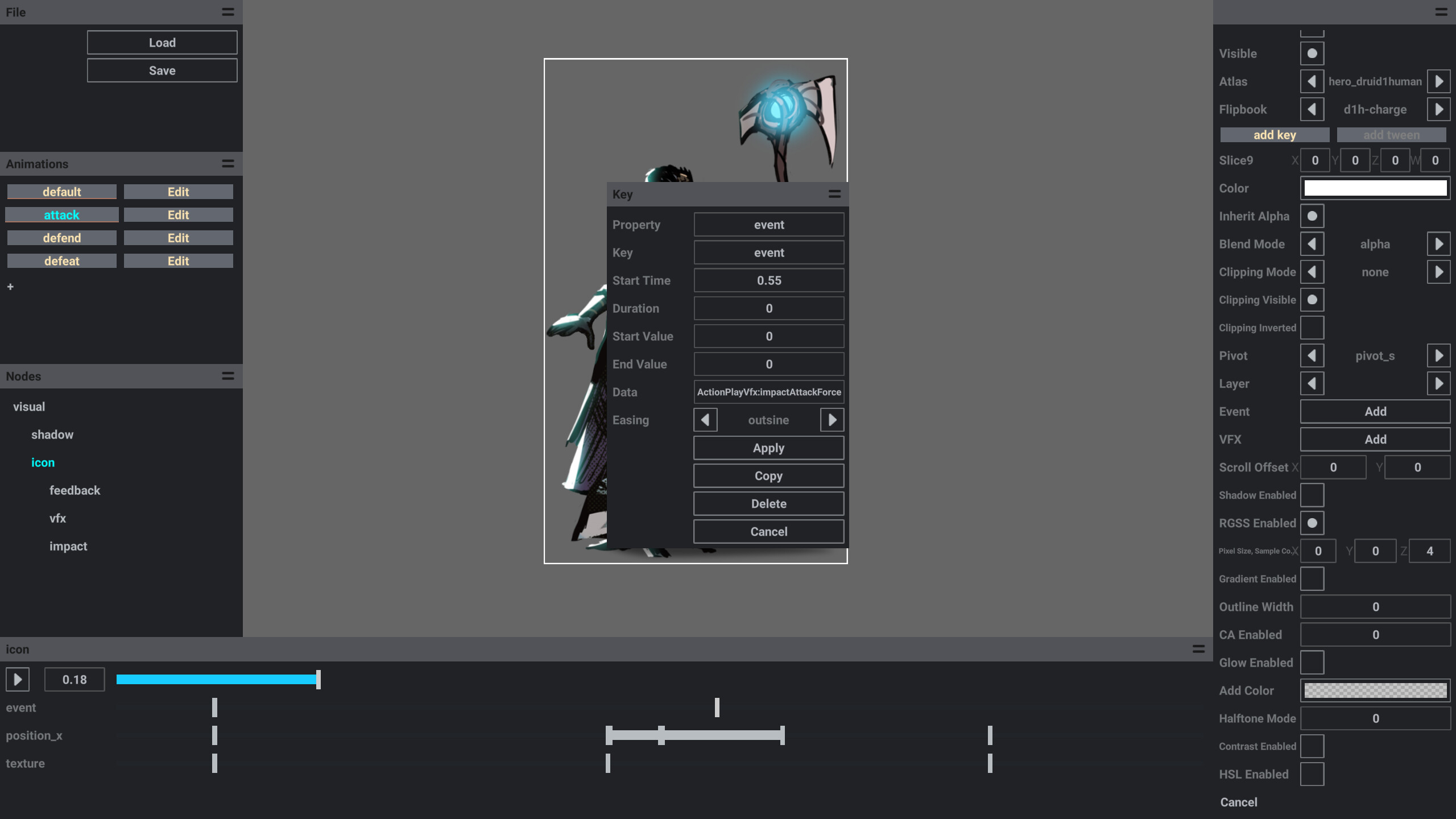

Again it works a lot like panthera editor. You can add keys or tweens based on changes to the node that you can make in the properties panel on the right. You can also click on any timeline key and edit its values.
This editor changes the panthera animation data and keys, and when I save it converts the data back into a panthera compatible json. If there’s no exotic stuff in there, it will still load in panthera. However, I built this so I could animate shader constants as well.

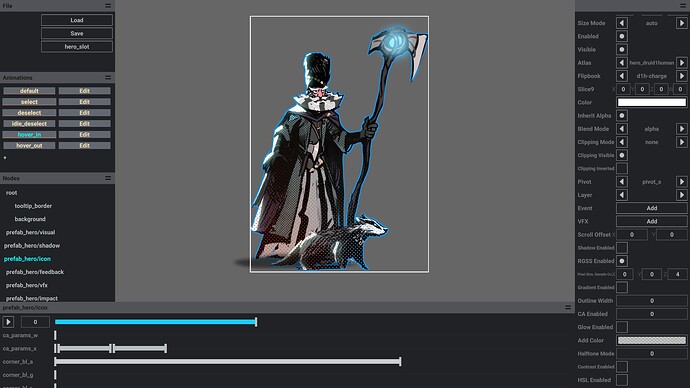

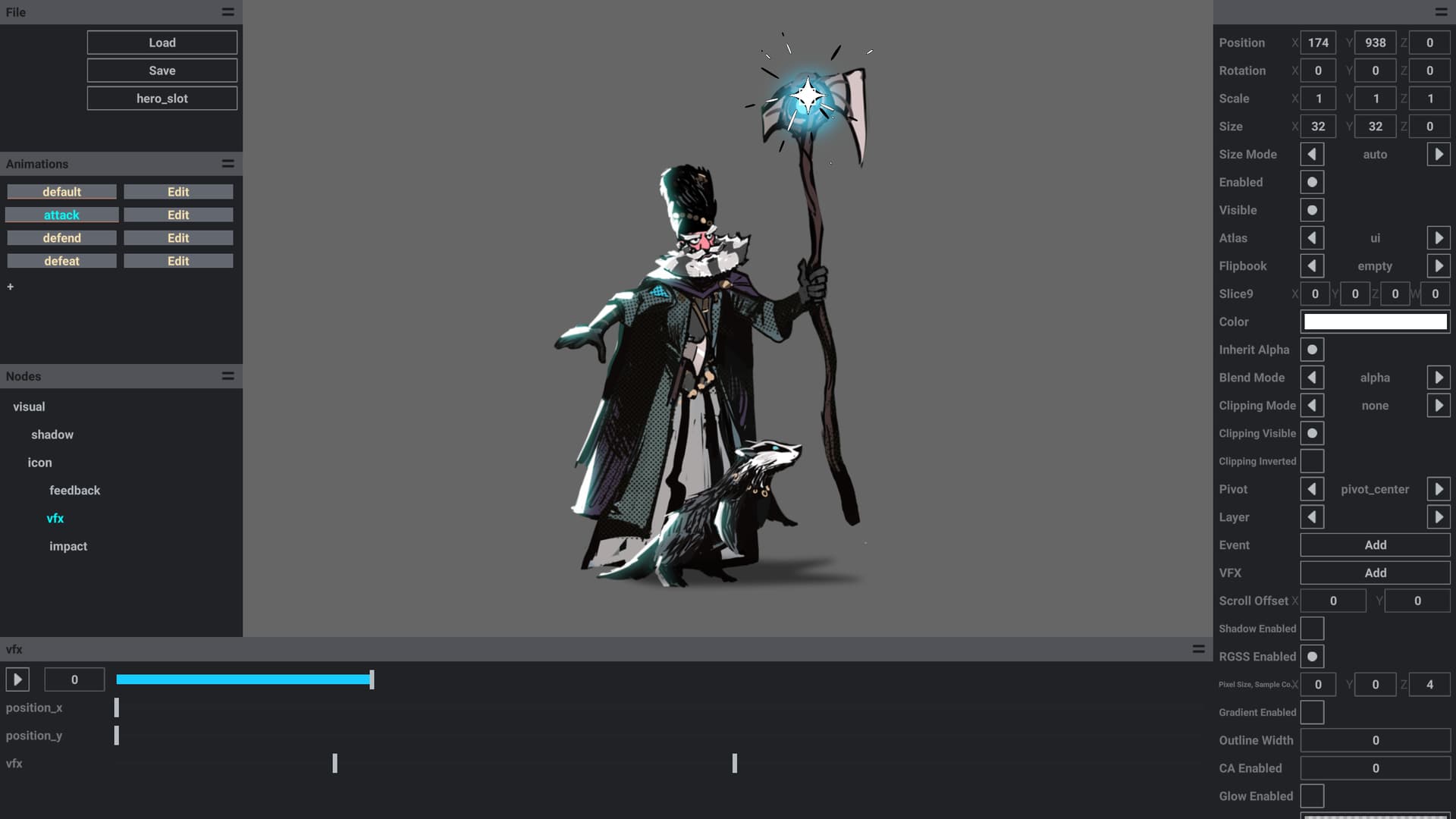

I’ve also added the option to play and stop particlefx in there and vfx overlay animations:
The only edits I made to panthera itself were to the gui adapter. I saw a new version came out recently, but I haven’t updated yet.
Hope this helps. I still have figure out how and how much of this editor I’ll cut out when making release builds.
This is very cool! I’m happy that you able to manage such complex GUI with a Druid, good job!
The only edits I made to panthera itself were to the gui adapter. I saw a new version came out recently, but I haven’t updated yet.
Should be easy to migrate, in GUI adapter just two lines changes - Panthera Runtime v5 by Insality · Pull Request #16 · Insality/panthera · GitHub
This editor changes the panthera animation data and key
I think in this way, if you open the JSON in the Panthera 2.0 again and re-save, it will delete all custom data you added with a custom editor. Can be an issue here from this side.
I have a script which turns all .gui template files into a big lua table, this allows me to instantiate templates without using prefabs
Also thought about this sometimes, but still never tried. As I think it can be useful sometimes!
I primarily started doing it because I wanted to rely less on strings to grab nodes. Something you also tried to solve with the SCHEME workflow in older versions of Druid.
Ok, big explainer. My script setup works like this:
local to_load_list = {
item_slot_equipment = require("src.items.item_slot_equipment"),
item_slot_inventory = require("src.items.item_slot_inventory"),
tooltip_item = require("src.items.tooltip_item"),
areamap = require("src.map.areamap"),
...
}
return to_load_list
for name, module in pairs(modules) do
if type(module) == "table" and module.dependencies then
for _, dependency_name in pairs(module.dependencies) do
if modules[dependency_name] then
module[dependency_name] = modules[dependency_name]
else
log:warning("Warning: Dependency " .. dependency_name .. " not found for " .. name)
end
end
end
end
for name, module in pairs(modules) do
if type(module) == "table" and module.init then
// Set aside the original init
local original_init = module.init
// A predefined scheme can override the node names, ui.templates contains all templates
local scheme = module.scheme or ui.templates[name].nodes
if scheme then
module.scheme = scheme
module.init = function(self, ...)
self.nodes= {}
// Widget instantiated based on prefab
if self._meta and self._meta.nodes and next(self._meta.nodes) then
for node_name, node_data in pairs(scheme) do
local node = self:get_node(node_name)
self.nodes[node_name] = gui_node.make_node(node)
end
// Widget requires nodes to be made
else
// Makes the nodes using gui.new_box_node() etc
ui.widget_helper.create_nodes_from_template(name, self.nodes, "prefab_" .. name .. "/")
// Add data expected by druid
if self._meta and self.nodes.root then
self._meta.nodes = self.nodes.root:get_tree()
self._meta.template = "prefab_" .. name
end
end
// Back to the original
original_init(self, ...)
end
end
end
end
In the end this allows me to do:
---@class some_widget: druid.widget
---@field nodes some_widget_nodes
local some_widget = {}
function some_widget:init()
self.nodes.icon:set_enabled(false)
end
return some_widget
Which feels very nice and clean, and gives me great autocomplete as some_widget_nodes annotations are also generated.
Not sure if anyone would find it helpful to pull this stuff out of my project and share it separately. However, I do feel I’d be nice if the Defold engine did more of this. Maybe I should work on that someday.
And yeah, Druid is nice, great work! There was a bit of a learning curve with regards to the things it does automagically. Like the stuff it does chaining template name when working with components inside components. When I was still learning Defold itself and tried having subcomponents work on nodes which weren’t actually inside subtemplates/prefabs it was tricky. Tricky to figure out how Druid keeps track of those nodes and why it wouldn’t see the ones I tried to give it access to.
A lot of that has cleared up with me learning, but also 1.1 was a very nice upgrade. It took a bit of work to convert all custom components to widgets. Technically I didn’t need to do that, but the widget workflow is just so much cleaner and easier to maintain.
