Defold 1.10.2 has been released

[Mathias_Westerdahl]

Defold 1.10.2

Summary

• NEW: (#10547) Added support of runtime creating and updating of textures array (by ekharkunov)
• NEW: (#10619) Make it possible to set GUI resources using gui.set() (by AGulev)
• NEW: (#10539) Wrong include reference for dmMemory (by selimanac)
• NEW: (#10715) Added support for hash userdata type keys in lua table (de)serialization. (by Gert-Jan)
• NEW: (#10587) Allow getting/setting more properties using editor scripts (by vlaaad)
• NEW: (#10635) Improve Scene View error experience (by matgis)
• NEW: (#10651) Directories are now treated as resources in editor scripts (by vlaaad)
• NEW: (#10644) Allow editing atlas images and animations from scripts (by vlaaad)
• NEW: (#10701) Introduce property drag handle (by sprocketc)
• NEW: (#10662) Expose tilesource animations and collision groups to editor scripts (by vlaaad)
• NEW: (#10714) Edit tilemaps using editor scripts (by vlaaad)
• NEW: (#10723) Edit particlefx emitters and modifiers using editor scripts (by vlaaad)
• FIX: (#10592) Default to no wasm simd on HTML5 (by JCash)
• FIX: (#10589) Copy resources from pods (by ekharkunov)
• FIX: (#10529) Updating volume and panning handling for sound system (by thengel01)
• FIX: (#10626) Faster atlas creation (by AGulev)
• FIX: (#10631) Make sure that GUI components are sorted per world (by AGulev)
• FIX: (#10653) go.exist() will now throw a Lua error if referencing another collection (by britzl)
• FIX: (#10656) Fixes memory leak in profiler on web platforms (by AGulev)
• FIX: (#10661) Make sure that changes in shaders are always taken into account during rebuild (by AGulev)
• FIX: (#10663) Added function dmGameSys::ResFontSetLineHeight() to set font line height for dynamic fonts (by JCash)
• FIX: (#10678) Added mutex to font.cpp to protect when adding and removing glyphs dynamically (by JCash)
• FIX: (#10695) Updated to lipo 0.10 (4c7c275) to fix a Windows renaming issue (by JCash)
• FIX: (#10713) Fixed issue where build to remote target can’t load a file more than once (by AGulev)
• FIX: (#10654) Make sure hashes are comparable even after the game object is removed (by AGulev)
• FIX: (#10686) Fixed data size when uploads compressed paged texture (by ekharkunov)
• FIX: (#10712) Fixing EOS behavior of tremolo decoder when skipping data (by thengel01)
• FIX: (#10705) Adding check to avoid zero delta values in sound mixer (by thengel01)
• FIX: (#10727) Fix for getting win32 user directories containing unicode characters (by JCash)
• FIX: (#10730) Improve hash management when creating objects using collectionfactory (by AGulev)
• FIX: (#10734) Remove all dynamically created hashes (from factories) when they aren’t used anymore (by AGulev)
• FIX: (#10624) Update camera.set_orthographic_zoom to accept numeric zoom value (by aglitchman)
• FIX: (#10611) Add game objects, collections and components on drop (by sprocketc)
• FIX: (#10612) Fix minimum scrollbar thumb size (by sprocketc)
• FIX: (#10522) Render convex hull collision shape (by sprocketc)
• FIX: (#10610) Don’t apply Model material assignments unless fully-formed (by matgis)
• FIX: (#10696) Take page offset into account when calculating the absolute position of the pivot handle (by sprocketc)
• FIX: (#10697) Improve performance when editing a large tilesource (by sprocketc)
• FIX: (#10575) Added thread support to HTML5 (by JCash)
• FIX: (#10685) Fixed an issue with editor logs (by AGulev)
• FIX: (#10789) Fixed issue with font cache invalidation (by AGulev)
• FIX: (#10769) Fixed crash on Android when rebooting the engine (by AGulev)

Engine

NEW: (#10547) ‘Added support of runtime creating and updating of textures array’ by ekharkunov
Texture arrays can be created and updated in the runtime. Example how it can be done:

--- create new texture array
	local new_tex = resource.create_texture("/runtime/example_array.texturec", {
		type = graphics.TEXTURE_TYPE_2D_ARRAY,
		width = 512,
		height = 512,
		page_count = 5,
		format = graphics.TEXTURE_FORMAT_RGB,
	})
--- update texture array slice
	local tex_path = "/bundle_resources/slice_02.png"
	local data = sys.load_resource(tex_path)
	local buf = image.load_buffer(data)
	resource.set_texture(new_tex, {
		type = graphics.TEXTURE_TYPE_2D_ARRAY,
		width = buf.width,
		height = buf.height,
		page = 1,
		format = graphics.TEXTURE_FORMAT_RGB
	}, buf.buffer)
	go.set("#mesh", "texture0", new_tex)

Also resource.get_texture_info() returns additional field page_count with actual slice count. For regular 2D texture value is 1, for cube map is 6.

NEW: (#10619) ‘Make it possible to set GUI resources using gui.set()’ by AGulev
It is now possible to set Font or Texture resources for a GUI using the gui.set() function from the GUI component itself, provided that msg.url() is used as the first argument instead of a node.

function on_message(self, message_id, message, sender)
   if message_id == hash("set_font") then
       gui.set(msg.url(), "fonts", message.font, {key = "my_font_name"})
       gui.set_font(gui.get_node("text"), "my_font_name")
   elseif message_id == hash("set_texture") then
       gui.set(msg.url(), "textures", message.texture, {key = "my_texture"})
       gui.set_texture(gui.get_node("box"), "my_texture")
       gui.play_flipbook(gui.get_node("box"), "logo_256")
   end
end

NEW: (#10539) ‘Wrong include reference for dmMemory’ by selimanac
Include reference should be <dmsdk/dlib/memory.h> not <dmsdk/dlib/dalloca.h>
Doc: https://defold.com/ref/stable/dmMemory/

NEW: (#10715) ‘Added support for hash userdata type keys in lua table (de)serialization.’ by Gert-Jan
It is now possible to use sys.save() and sys.load() to save and load tables with hashes as keys. This allows for example to (de)serialize tables that are produced and used by collectionfactory. This change also means that sys.serialize() and sys.deserialize() can serialize and deserialize tables with hashes as keys.

Using a hash as a key in a serialized table makes the binary format incompatible with older versions of the engine.

FIX: (#10592) ‘Default to no wasm simd on HTML5’ by JCash
This fixes a regression from 1.10.0

FIX: (#10589) ‘Copy resources from pods’ by ekharkunov
Now all resources from Pods correctly packed into .ipa.

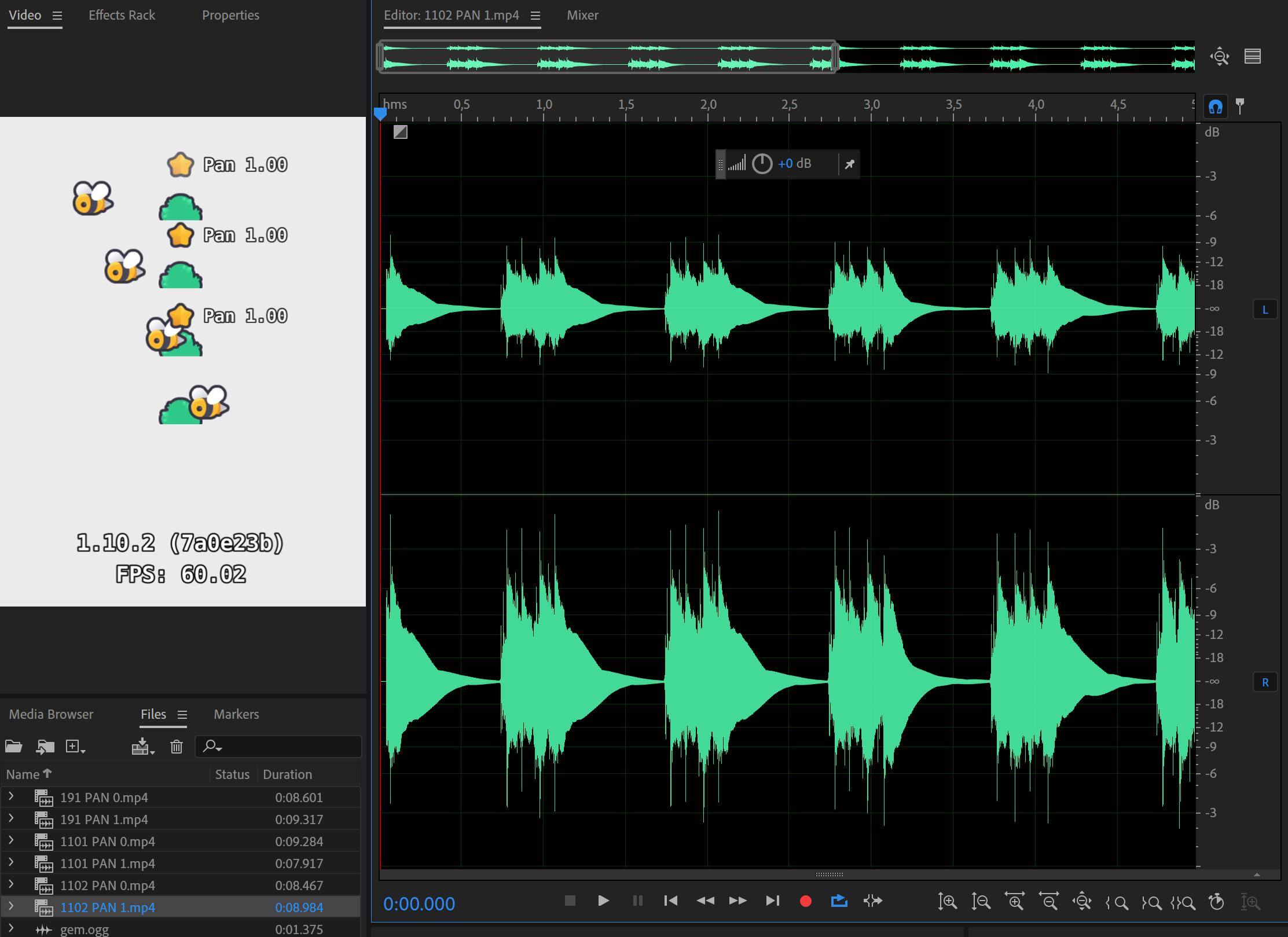

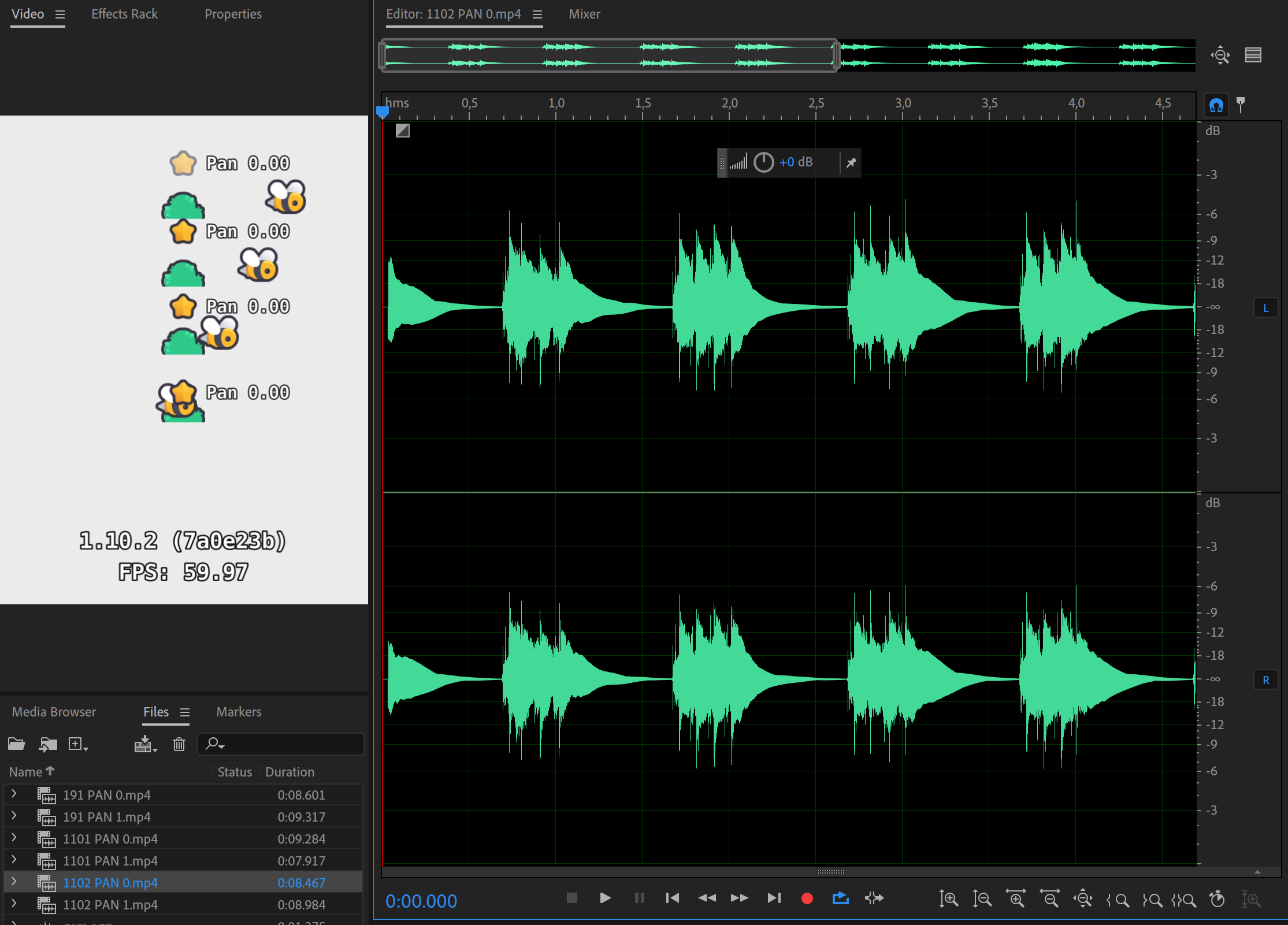

FIX: (#10529) ‘Updating volume and panning handling for sound system’ by thengel01

• Sound panning now configured to correctly pan stereo sound instances (basically treats them as 2 mono sources for panning).

  • NOTE: This fixes a (very old) bug where the mechanism removed ~3dB of the sounds. The fix will make the sound strength back to normal again. If this bug fix affects your game, you can lower the main sound.gain (default 1.0) in the game.project settings.

• Added logic that can support exponential gain (as in: 0.5 perceptually is “half volume”). This is useful for a nicer fade ins/outs.

  • The functionality is enabled by setting the sound.use_linear_gain = 0 in game.project

FIX: (#10626) ‘Faster atlas creation’ by AGulev
Atlas creation is now twice as fast in bob.jar and about three times faster in the editor.

FIX: (#10631) ‘Make sure that GUI components are sorted per world’ by AGulev
Make sure that GUI components spawned in different worlds (in different collection proxies) are sorted separately, and that the later-spawned world is always rendered on top unless another behavior is specified using gui.set_render_order().

FIX: (#10653) ‘go.exist() will now throw a Lua error if referencing another collection’ by britzl
Like all other functions in the go.* namespace the go.exists(url) function will now throw a Lua error if specifying a url referencing a game object from a different collection than the one from which go.exists() was called.

FIX: (#10656) ‘Fixes memory leak in profiler on web platforms’ by AGulev

FIX: (#10661) ‘Make sure that changes in shaders are always taken into account during rebuild’ by AGulev

FIX: (#10663) ‘Added function dmGameSys::ResFontSetLineHeight() to set font line height for dynamic fonts’ by JCash
There is also the corresponding dmGameSys::ResFontGetLineHeight()

FIX: (#10678) ‘Added mutex to font.cpp to protect when adding and removing glyphs dynamically’ by JCash

FIX: (#10695) ‘Updated to lipo 0.10 (4c7c275) to fix a Windows renaming issue’ by JCash

Release v0.10.0 · konoui/lipo

FIX: (#10713) ‘Fixed issue where build to remote target can’t load a file more than once’ by AGulev
Fixed issue where cached resources loaded remotely from the editor return the wrong file size, resulting in a string length overflow error

FIX: (#10654) ‘Make sure hashes are comparable even after the game object is removed’ by AGulev
Fixes an issue where, after removing a game object, its ID isn’t equal to a hash with the same value.

FIX: (#10686) ‘Fixed data size when uploads compressed paged texture’ by ekharkunov
Fixed wrong data size used when updating a compressed paged texture in OpenGL.

FIX: (#10712) ‘Fixing EOS behavior of tremolo decoder when skipping data’ by thengel01
This fixes a recently introduced issue with sound instances “hanging around” forever if they are played back with group volume down to zero.

FIX: (#10705) ‘Adding check to avoid zero delta values in sound mixer’ by thengel01
This change fixes a recently introduced issue where the engine would crash if a sound was played with a very low speed.

FIX: (#10727) ‘Fix for getting win32 user directories containing unicode characters’ by JCash
This fixes an issue where the engine wouldn’t start for some users, when their app directory contained unicode characters.

FIX: (#10730) ‘Improve hash management when creating objects using collectionfactory’ by AGulev
Fix issue where hash can be removed while it’s in use

FIX: (#10734) ‘Remove all dynamically created hashes (from factories) when they aren’t used anymore’ by AGulev

FIX: (#10624) ‘Update camera.set_orthographic_zoom to accept numeric zoom value’ by aglitchman
The function camera.set_orthographic_zoom() now accepts the value as number (before it was boolean) and works the same as setting this value via go.set.

FIX: (#10575) ‘Added thread support to HTML5’ by JCash
This introduces a new web target platform wasm_pthread-web
When bundling, you can select to include supoprt for this platform.
Note that distribution sites using ADS don’t generally support threads, as it requires CORS setup.

We’ve also updated to Emscripten 4.0.6.
This also updates our minimum supported browser versions:

No Threads:

• MIN_FIREFOX_VERSION=40
• MIN_SAFARI_VERSION=101000
• MIN_CHROME_VERSION=45

With pthreads:

• MIN_FIREFOX_VERSION=79
• MIN_SAFARI_VERSION=150000
• MIN_CHROME_VERSION=75

FIX: (#10789) ‘Fixed issue with font cache invalidation’ by AGulev
Fixed issue where the cache stayed invalidated after updating to a newer version of Defold where the font or glyph bank output format was changed.
Usually, it appeared as a Unable to create resource: /_generated_font_f8188ecab1e82fcc.glyph_bankc: FORMAT_ERROR and could only be fixed by removing the build folder, which is no longer necessary.

FIX: (#10769) ‘Fixed crash on Android when rebooting the engine’ by AGulev
Fixed issue where sys.reboot() of the engine on Android may crash the game.

Editor

NEW: (#10587) ‘Allow getting/setting more properties using editor scripts’ by vlaaad
Previously, some properties couldn’t be get/set by editor scripts. Now, it’s possible to do so! We added support for getting and setting:

• Color properties
• Multiline text properties
• Choice box properties
• Slider properties

Remaining unsettable properties are curve and curve spread (in particle fx).

NEW: (#10635) ‘Improve Scene View error experience’ by matgis

• Render errors from Scene View objects are now presented in a more readable view and can be copied into the clipboard.
• Most shader syntax errors will now cause render errors in the Scene View.

NEW: (#10651) ‘Directories are now treated as resources in editor scripts’ by vlaaad
Now, directories may be accessed as resources in editor scripts. The directories have 2 properties:

• path - the path to the directory, same as with file resources
• children - list of children resources

For example, here is how you can ensure that an atlas has all images from a directory:

local images = editor.get("/assets/images", "children")
local atlas = "/assets/main.atlas"
local txs = {editor.tx.clear(atlas, "images")}
for i = 1, #images do
    local resource_path = editor.get(images[i], "path")
    if resource_path:match(".png$") ~= nil then
        txs[#txs + 1] = editor.tx.add(atlas, "images", {image = resource_path})
    end
end
editor.transact(txs)

NEW: (#10644) ‘Allow editing atlas images and animations from scripts’ by vlaaad
Now, it’s possible to edit (add/remove) atlas images and animations using editor scripts. This is achieved using the following additions to the editor script API:

• atlas resources now define images and animations properties, which are lists of image and animation nodes, respectively
• atlas animations now define an images property, which is a list of image nodes
• editor.get can be used to get the list of images and animations in an atlas, and then to look up the properties of the returned nodes
• new transaction functions editor.tx.add, editor.tx.remove, and editor.tx.clear can be used to edit these node lists
• editor.can_add can be used to check if a node property is a list of nodes

Some examples:

1. Add an image to an atlas:

   editor.transact({
       editor.tx.add("/main.atlas", "images", {image="/assets/hero.png"})
   })


2. Find a set of all images used in an atlas:

   local all_images = {} ---@type table<string, true>
   -- first, collect all "bare" images
   local image_nodes = editor.get("/main.atlas", "images")
   for i = 1, #image_nodes do
       all_images[editor.get(image_nodes[i], "image")] = true
   end
   -- second, collect all images used in animations
   local animation_nodes = editor.get("/main.atlas", "animations")
   for i = 1, #animation_nodes do
       local animation_image_nodes = editor.get(animation_nodes[i], "images")
       for j = 1, #animation_image_nodes do
           all_images[editor.get(animation_image_nodes[j], "image")] = true
       end
   end
   pprint(all_images)
   -- {
   --     ["/assets/hero.png"] = true,
   --     ["/assets/enemy.png"] = true,
   -- }}


3. Replace all animations in an atlas:

   editor.transact({
       editor.tx.clear("/main.atlas", "animations"),
       editor.tx.add("/main.atlas", "animations", {
           id = "hero_run",
           images = {
               {image = "/assets/hero_run_1.png"},
               {image = "/assets/hero_run_2.png"},
               {image = "/assets/hero_run_3.png"},
               {image = "/assets/hero_run_4.png"}
           }
       })
   })


Related to Editor's scripting proposal · Issue #8504 · defold/defold · GitHub

NEW: (#10701) ‘Introduce property drag handle’ by sprocketc

Draggable properties now display a dedicated drag controller on mouse over input, instead of using the label as a handle.

NEW: (#10662) ‘Expose tilesource animations and collision groups to editor scripts’ by vlaaad
Now editor scripts can access and edit animations and collision groups of tilesources using these 3 new tilesource properties:

• animations - a list of animation nodes of the tilesource
• collision_groups - a list of collision group nodes of the tilesource
• tile_collision_groups - a table of collision group assignments for tiles in the tilesource

For example, here is how you can setup a tilesource:

local tilesource = "/game/world.tilesource"
editor.transact({
    editor.tx.add(tilesource, "animations", {id = "idle", start_tile = 1, end_tile = 1}),
    editor.tx.add(tilesource, "animations", {id = "walk", start_tile = 2, end_tile = 6, fps = 10}),
    editor.tx.add(tilesource, "collision_groups", {id = "player"}),
    editor.tx.add(tilesource, "collision_groups", {id = "obstacle"}),
    editor.tx.set(tilesource, "tile_collision_groups", {
        [1] = "player",
        [7] = "obstacle",
        [8] = "obstacle"
    })
})

NEW: (#10714) ‘Edit tilemaps using editor scripts’ by vlaaad
Now you can edit tilemaps using editor scripts! To support this feature, we introduce the following additions to the editor script API:

• editor.get(tilemap_layer, "tiles") to get tiles from a tilemap layer
• editor.tx.set(tilemap_layer, "tiles", tiles) to create a transaction step that sets tiles in a tilemap layer
• tilemap.tiles.new() to create a fresh data structure that holds an unbounded 2d tile grid (in the editor, contrary to the engine, the tilemap is unbounded, and coordinates may be negative)
• tilemap.tiles.get_tile(tiles, x, y) to get a tile index at a specific coordinate
• tilemap.tiles.get_info(tiles, x, y) to get full tile information at a specific coordinate (the data shape is the same as in the engine’s tilemap.get_tile_info function)
• tilemap.tiles.iterator(tiles) to create an iterator over all tiles in the tilemap
• tilemap.tiles.clear(tiles) to remove all tiles from the tilemap
• tilemap.tiles.set(tiles, x, y, tile_or_info) to set a tile at a specific coordinate
• tilemap.tiles.remove(tiles, x, y) to remove a tile at a specific coordinate

For example, here is how you can print the contents of the whole tilemap:

local layers = editor.get("/level.tilemap", "layers")
for i = 1, #layers do
    local layer = layers[i]
    local id = editor.get(layer, "id")
    local tiles = editor.get(layer, "tiles")
    print("layer " .. id .. ": {")
    for x, y, tile in tilemap.tiles.iterator(tiles) do
        print("  [" .. x .. ", " .. y .. "] = " .. tile)
    end
    print("}")
end

Here is how you can add a layer with tiles to a tilemap:

local tiles = tilemap.tiles.new()
tilemap.tiles.set(tiles, 1, 1, 2)
editor.transact({
    editor.tx.add("/level.tilemap", "layers", {
        id = "new_layer",
        tiles = tiles
    })
})

NEW: (#10723) ‘Edit particlefx emitters and modifiers using editor scripts’ by vlaaad
With this change, it’s now possible to edit particlefx emitters and modifiers using editor scripts. We added:

• "emitters" and "modifiers" properties on particlefx component
• "modifiers" property on particlefx emitter component
• ability to read and write particlefx curve properties in editor scripts

New emitters and modifiers properties are node lists, where each node may be accessed using editor.get() and modified using editor.tx.set(). For example, adding a new circle emitter works like this:

editor.transact({
    editor.tx.add("/fire.particlefx", "emitters", {
        type = "emitter-type-circle"
    })
})

Curves are represented as a table with a non-empty list of points, where each point is a table with the following properties:

• x - the x coordinate of the point, should start at 0 and end at 1
• y - the value of the point
• tx (0 to 1) and ty (-1 to 1) - tangents of the point. E.g., for an 80-degree angle, tx should be math.cos(math.rad(80)) and ty should be math.sin(math.rad(80)).
  Curve spreads additionally have a spread number property.

For example, setting a particle lifetime alpha curve might look like this:

editor.transact({
    editor.tx.set(emitter, "particle_key_alpha", { points = {
        {x = 0,   y = 0, tx = 0.1, ty = 1}, -- start at 0, go up quickly
        {x = 0.2, y = 1, tx = 1,   ty = 0}, -- reach 1 at 20% of a lifetime
        {x = 1,   y = 0, tx = 1,   ty = 0}  -- slowly go down to 0
    }})
})

FIX: (#10611) ‘Add game objects, collections and components on drop’ by sprocketc
Add game objects, collections and components on drop to scenes.

FIX: (#10612) ‘Fix minimum scrollbar thumb size’ by sprocketc
Increased minimum scrollbar thumb size.

Before (600 nodes) → After (600 nodes)

FIX: (#10522) ‘Render convex hull collision shape’ by sprocketc
Renders the collision polygon of .convexshape files.

FIX: (#10610) ‘Don’t apply Model material assignments unless fully-formed’ by matgis
The editor will no longer try to apply Model material assignments that do not refer to a .material resource when rendering Models in the Scene View. This fixes an issue where manually deleting the path from the material resource field of a previously assigned material, that is no longer defined in the referenced Mesh, would cause an exception that locked up the editor.

FIX: (#10696) ‘Take page offset into account when calculating the absolute position of the pivot handle’ by sprocketc
Fixed pivot point handle position on paged atlases.

FIX: (#10697) ‘Improve performance when editing a large tilesource’ by sprocketc
Editing collision groups or other properties of a tilesource which do not affect the tilesource layout will no longer regenerate the texture.

FIX: (#10685) ‘Fixed an issue with editor logs’ by AGulev
Fixes the issue where logs in the Editor’s console don’t work when Simulated Resolution is used (Windows only).

[Wolfe2x7]

Add game objects, collections and components on drop’

What a huge QoL feature the engine has deserved for a long time.

I noticed that if you drag in GOs without interruption, each GO is instanced as a child of the last one, diving into a tree of grandchildren until you de-select (restoring focus to the owner collection). Collections, on the other hand, stop at the first one until you de-select it.

The first time I dragged a second GO, I thought the feature had already bugged because the GO was not visible where I was looking! The way the dragged position defines the children’s positions doesn’t seem right, at least.

[mattpwest]

Thanks for the new release!

The editor support for scripting on atlases and tilemaps sounds very useful! I think I had to set up 60+ animations by hand when I started porting my PICO-8 project to Defold a year ago…

---

As usual, there’s an updated Docker image for CI builds: here.

[britzl]

@Wolfe2x7

I noticed that if you drag in GOs without interruption, each GO is instanced as a child of the last one, diving into a tree of grandchildren until you de-select (restoring focus to the owner collection). Collections, on the other hand, stop at the first one until you de-select it.

Could you please create a bug report on GitHub?

[Wolfe2x7]

Naturally. My bad for not trying the beta, because I would have found this just as fast.

Game objects nest unexpectedly when dragged & dropped into a collection consecutively

[Faraz_Khan]

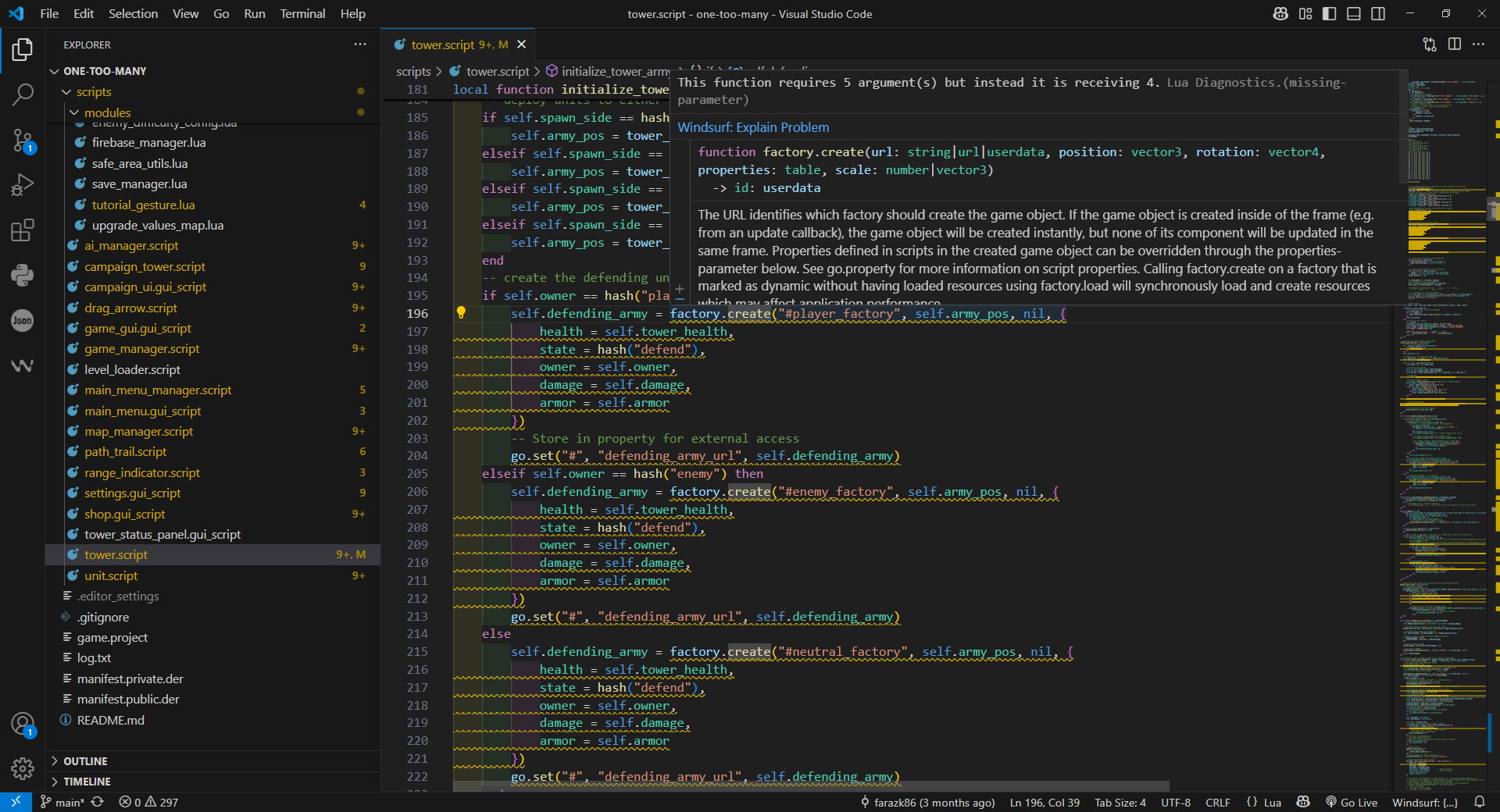

After updating to this release, I am getting a lot of warnings such as the one shown in screenshot using vscode.

The same is for all functions such as for go.get shown below:

I know the vscode plugin is not officially supported but still wanted to report as Im sure many of use are using the vscode plugin

[neralion]

[Solved] In the documentation, optional function parameters have been marked as mandatory

For example, API reference (GUI) used to be shown as gui.animate(node, property, to, easing, duration, [delay], [complete_function], [playback]), but now it appears as gui.animate(node, property, to, easing, duration, delay, complete_function, playback). Apparently, this caused issues with the “Defold Kit” annotations, as the “|nil” option for function parameters has disappeared. [image] [image]

I already brought up this issue in another thread. To fix “Defold Kit,” we need to kindly ask @astrochili to update it to handle the new convention for marking optional function parameters.
