Adding a 3rd texture to sprites causes a crash

andrew-flick · April 23, 2024, 1:30pm

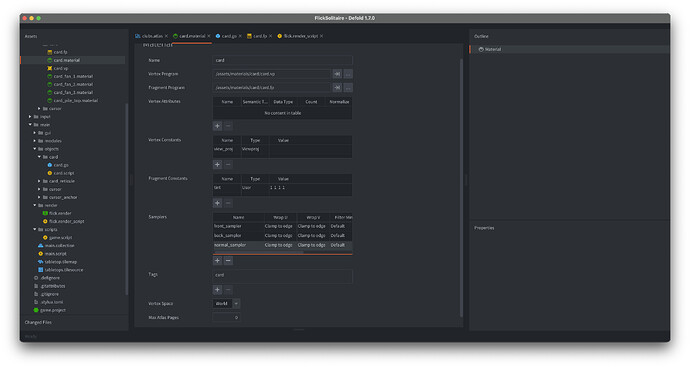

I have already got 2 texture atlases. One for the front of cards and one for the back which works fine. I’m now trying to add a 3rd for the normals and I get a crash…

I’m not sure what I have done wrong to cause this.

AGulev · April 23, 2024, 1:37pm

The best you can do in such cases is try to isolate the crash in a separate small project, and then open an issue on the GitHub issue tracker (using Help > Report Issue). Explain the problem there and attach your repro project to the issue + console log as a code block or just a txt file.

It will help us to track the issue. Using Help > Report Issue provides most of the information we need. A repro case will help us to figure out what’s going on and fix the issue as soon as possible.

andrew-flick · April 23, 2024, 1:38pm

andrew-flick · April 24, 2024, 10:18am

I have uploaded a repro project for you to take a look at.

github.com/defold/defold

Adding a 3rd texture to a material results in a crash

opened 09:32AM - 24 Apr 24 UTC

andrew-flick

bug

**Describe the bug (REQUIRED)** I have a sprite that represents a playing card …that has 2 textures. One for the front and one for the back so that I can swap them in the fragment shader. Just adding a third sampler for a normal map, makes the game crash on running. **To Reproduce (REQUIRED)** Steps to reproduce the behavior: 1. Open game.project 2. Select Project>Fetch Libraries 3. Build and run ( you should see a card back) 4. Open assets/materials/card/card.material 5. Add a 3rd sampler to Samplers using "+" called normal_sampler with the same settings as the 2 other samplers 6. Open main/objects/card/card.go 7. Select "sprite" in the outline 8. Select "assets/atlases/AC_normal.atlas" [NB: it doesn't matter which atlas is chosen] for the normal_sampler 9. Build and run to observe the crash **Expected behavior (REQUIRED)** No crash **Defold version (REQUIRED):** 1.7.0 **Platforms (REQUIRED):** - Platforms: macOS - OS: Sonoma - Device: MacBook Pro 14" M1 **Minimal repro case project (OPTIONAL):** [Defold_multitexture_bug.zip](https://github.com/defold/defold/files/15091955/Defold_multitexture_bug.zip) **Logs (OPTIONAL):** INFO:DLIB: Log server started on port 50093 INFO:ENGINE: Target listening with name: orac-2.local - 10.0.0.13 - Darwin INFO:ENGINE: Engine service started on port 50094 INFO:GRAPHICS: Installed graphics device 'ADAPTER_FAMILY_OPENGL' INFO:ENGINE: Defold Engine 1.7.0 (bf4dc66) INFO:DLIB: Initialized Remotery (ws://127.0.0.1:17815/rmt) INFO:ENGINE: Loading data from: build/default INFO:ENGINE: Initialised sound device 'default' Assertion failed: (i < Size()), function operator[], file array.h, line 494. INFO:CRASH: Successfully wrote Crashdump to file: /Users/andy/Library/Application Support/Defold/_crash ERROR:CRASH: CALL STACK: ERROR:CRASH: 0 dmengine 0x000000010248cc88 _ZN7dmCrash7OnCrashEi + 104 ERROR:CRASH: 1 libsystem_platform.dylib 0x000000019f69b584 _sigtramp + 56 ERROR:CRASH: 2 libsystem_pthread.dylib 0x000000019f66ac20 pthread_kill + 288 ERROR:CRASH: 3 libsystem_c.dylib 0x000000019f577a20 abort + 180 ERROR:CRASH: 4 libsystem_c.dylib 0x000000019f576d10 err + 0 ERROR:CRASH: 5 dmengine 0x00000001024d73a8 _ZN12dmGameSystem16CompSpriteRenderERKN12dmGameObject22ComponentsRenderParamsE.cold.5 + 0 ERROR:CRASH: 6 dmengine 0x00000001022a2bc0 _ZN12dmGameSystem16CompSpriteRenderERKN12dmGameObject22ComponentsRenderParamsE + 2480 ERROR:CRASH: 7 dmengine 0x000000010225de3c _ZN12dmGameObject6RenderEPNS_16CollectionHandleE + 176 ERROR:CRASH: 8 dmengine 0x000000010224a3e4 _ZN8dmEngine4StepEPNS_6EngineE + 980 ERROR:CRASH: 9 dmengine 0x000000010224a974 _Z14dmEngineUpdatePN8dmEngine6EngineE + 32 ERROR:CRASH: 10 dmengine 0x000000010224b54c _ZN8dmEngine7RunLoopEPKNS_13RunLoopParamsE + 104 ERROR:CRASH: 11 dmengine 0x000000010224b434 _Z11engine_mainiPPc + 88 ERROR:CRASH: 12 dyld 0x000000019f2e20e0 start + 2360 ERROR:CRASH: **Workaround (OPTIONAL):** If there is a workaround, please describe it here. **Screenshots (OPTIONAL):** If applicable, add screenshots to help explain your problem. **Additional context (OPTIONAL):** Add any other context about the problem here.
