Game object render order is unexpected

Questions
1

I make a collection with two game boject:

  • board: z order = 0
  • generator: z order = 1

Board and generator will create hex game obj on init in its bind scrpit.
But the draw order is unexpected like:

Pasted image566×602 48.4 KB

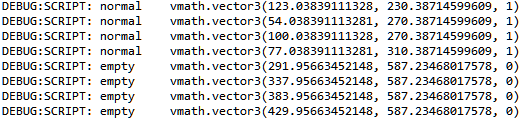

I output the hex game obj world postion in console, but it seems ok.
Pasted image530×118 2.91 KB

I had spent a long time to solve this, but failed…
Am I miss something important?

2

How it works in the game engine is the rule not the editor. I’m not super sure what’s going on. Do you have anything else going on with a camera or a custom render script?

Check the sprite to make sure it’s 0,0,0 in the editor?

Are the yellow 5 the “normal” or “empty”?

Any rotation on any of the parents?

What’s the z of the factory?

Try to set the z value of each object based to what you want its z index to be. For example 0.0001 is a valid value, another 0.002, 0003… If you want to be able to use values below or higher than -1 and 1 you will have to edit your render script.

3

Thanks for your reply!

I use built in render script and has no camera.

In Editor, i set the mother game obj pos as:

Pasted image321×286 26.6 KB

the output is to the child hex game obj world positon

Yellow 5 is “normal”, the black is “empty”

I did not set z of any factory, and it would be zero.

4

Finally, I find the reason: sprite z had been set to -1

But why the follow code get the output z of 1 but not 0
(parent game obj’s z is 1)

print('normal', go.get_world_position('#sprite'))
2 Likes
5

i seen similar issue today. so made separated objects to control z on sprite
